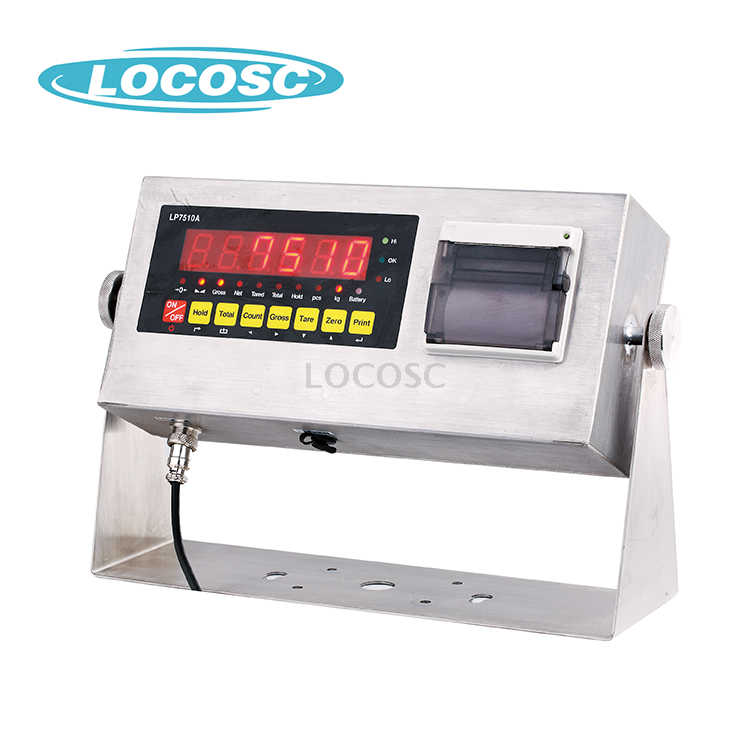

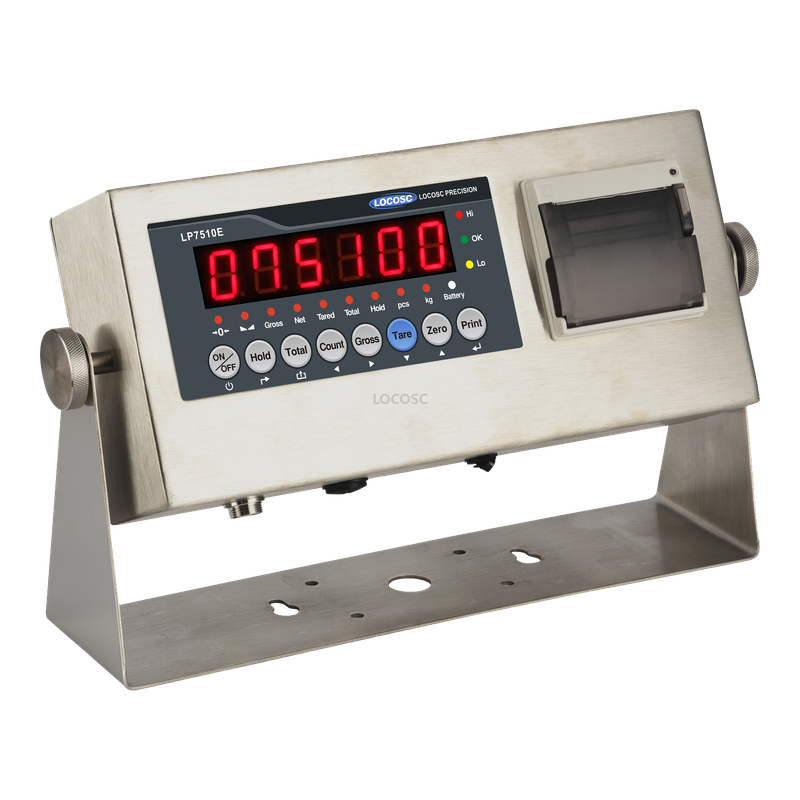

LP7510P-102 Digital Weighing Indicator Printer

Product Description

Product Name: Digital LED indicator

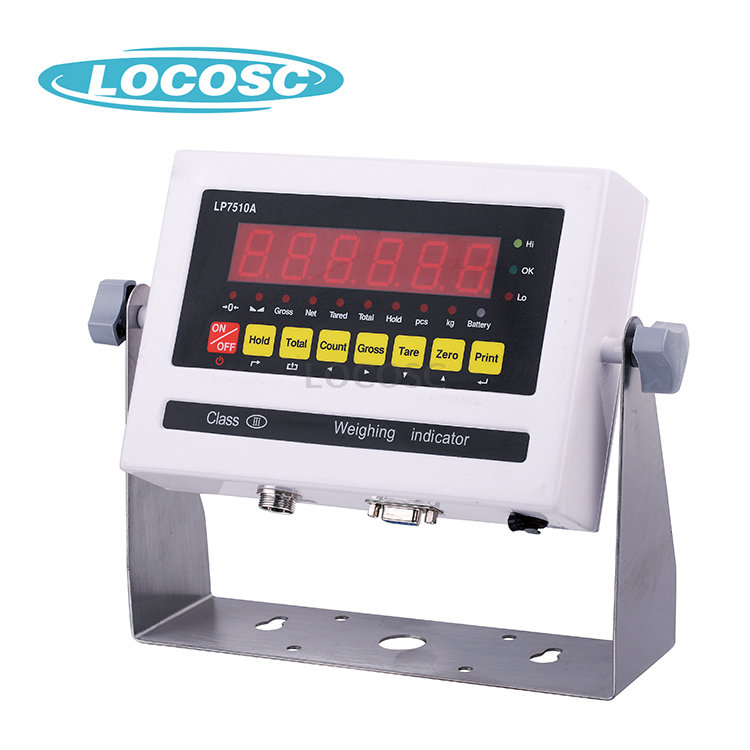

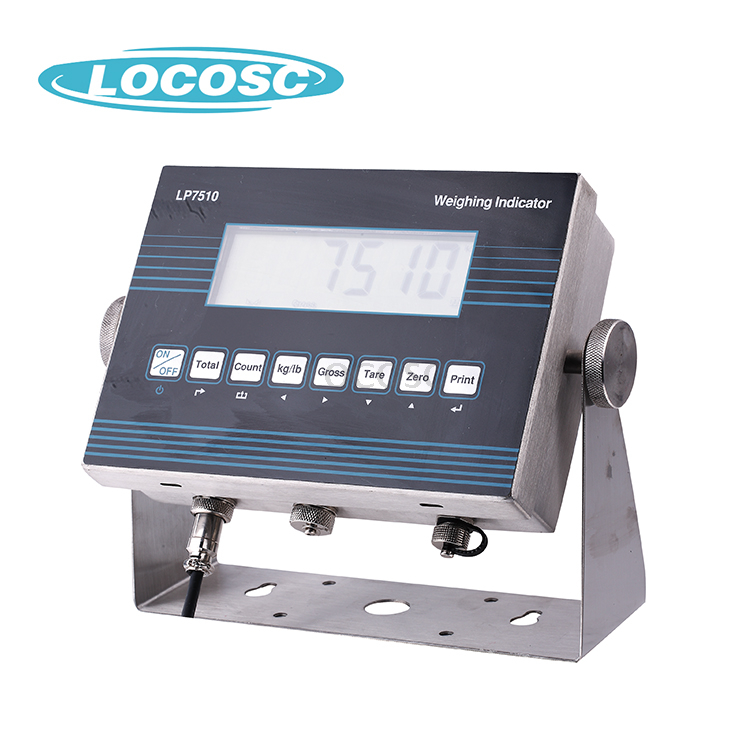

LP7510 is the indicator housed in a durable stainless steel or mild steel enclosure. It is equipped with a large easy to read 6 digits 0.8'' LED or LCD display. Capable of powering up to 6-350Ω load cells, this simple device can handle a multitude of functions. A full duplex RS-232 port can transmit data on demand or continuously to match the input requirement of a wide variety of devices including printers. Remote displays and computers.

LP7510

INDUSTRIAL WEIGHING SOLUTIONS

STANDARD FEATURES & BENEFITS

• High Quality / Low Cost

• Stainless steel or mild steel Enclosure

• Full Duplex RS-232 Serial Port

• Peak hold or data hold function

• Display up to 10,000 graduations

• Drives up to four 350Ω load cells

• Operates on AC Adapter or 9 Volt DC

• Automatic Power off

• Low-battery remind and charging automaticlly controlled

• With Date and Time

SPECIFICATIONS

1. Stimulating voltage  +5VD

2. A/D converting speed 10 times/sec

3. load capacity it can connect 4 pcs 350Ω load cell at most

4. weight unit kg. lb

5. Resolution  3000e

6. Interval1/2/5/10/20/50

7. Display 6-digits LED,word height: 20.3mm

8. key ON/OFF TOTAL TARE ZERO SET

9. Interface RS232C  Baud rate optional 1200/2400/4800/9600

10. Ambient temperature  -10~40°C

11. Storage temperature   -20~+60°C

12. optional power    6V/4Ah rechargeable battery;9VDC adapter
