LOCOSC
| Quantity: | |
|---|---|
Product overview
Rated Capacity | 3t | |
Accuracy Class | D1 | |
Rated Output | 1.5±0.01mV/V | |
Non-linearity | ±0.05% F.S | |
Creep（30min） | ±0.03% F.S | |
Input Impedance | 750±20Ω | |
Output Impedance | 702±3Ω | |
Operation Temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation Recommended | 4~12VDC, Max:15vDC | |
Cable | 4-wire with screen | Exc+(红 red)， Exc-（黑 black） Sig+（绿 green），Sig-（白 white） |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Light railway scale , compression testing situation | |

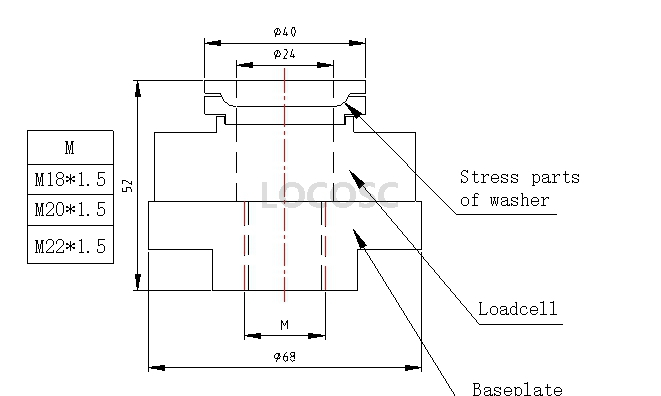

Outline Dimension(mm)
Product overview
Rated Capacity | 3t | |
Accuracy Class | D1 | |
Rated Output | 1.5±0.01mV/V | |
Non-linearity | ±0.05% F.S | |
Creep（30min） | ±0.03% F.S | |
Input Impedance | 750±20Ω | |
Output Impedance | 702±3Ω | |
Operation Temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation Recommended | 4~12VDC, Max:15vDC | |
Cable | 4-wire with screen | Exc+(红 red)， Exc-（黑 black） Sig+（绿 green），Sig-（白 white） |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Light railway scale , compression testing situation | |
Outline Dimension(mm)
