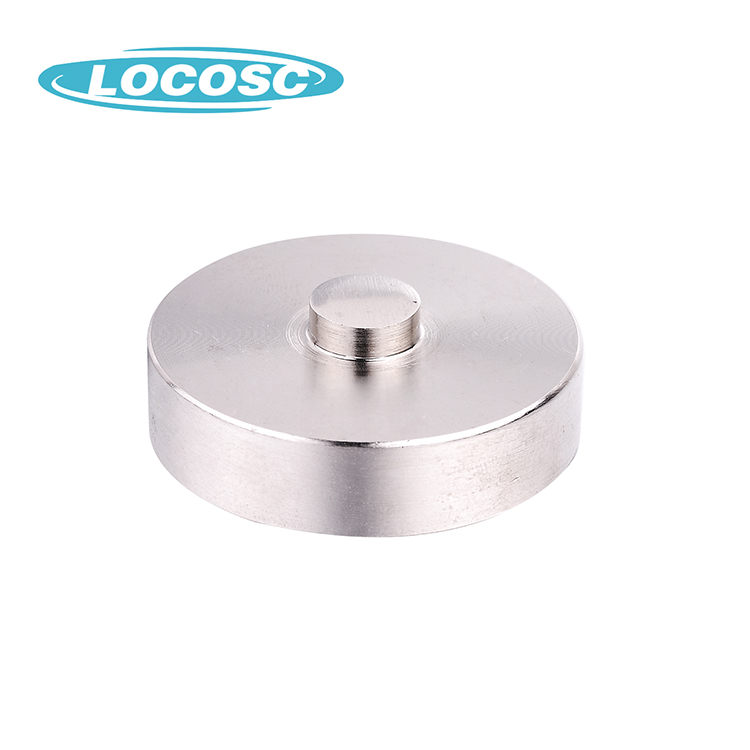

LP7133-N Compression load cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow：Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing（Cleaning glue）→Packing and storage
<template class="visibility">
LP7133-N Compression load cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow：Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing（Cleaning glue）→Packing and storage
</template>
LP7133-N
Rated Capacity: 200,500lb;1,2,3,5klb
Rated Output: 0.5~1.0 mV/V
Total error: ±0.5%F.S
Creep(30min): ±0.3%F.S
Input Resistance: 350±10Ω
Output Resistance: 350±2Ω
Operating Temperature: -10~+40℃
Safe Overload: 150%F.S
Destructive Load: 200%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 1.5m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Stainless steel,IP67
Application for: Pressure testing for small place.
