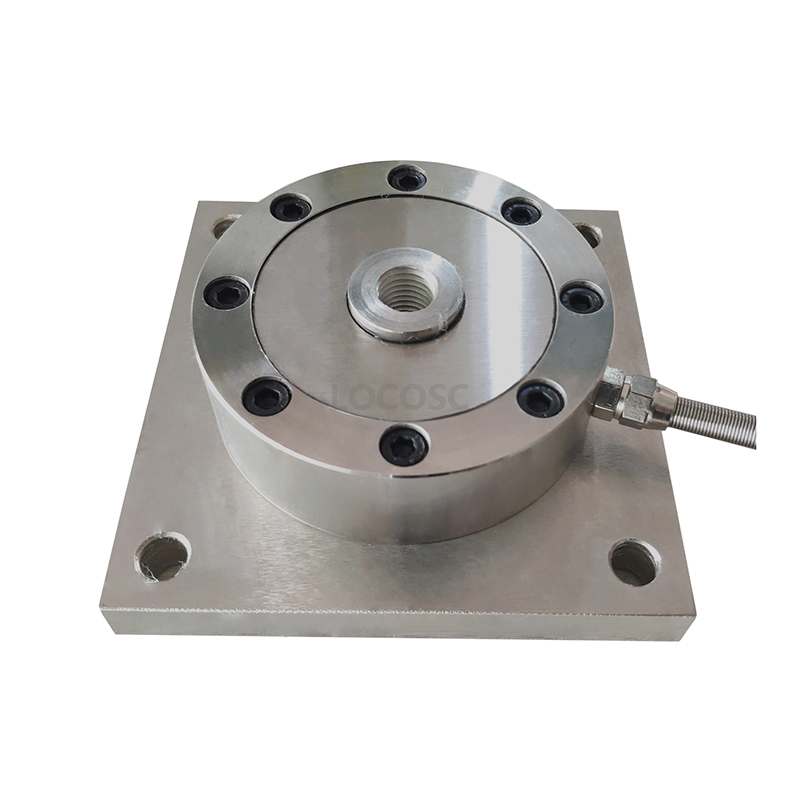

LP7135E
LOCOSC
| Quantity: | |
|---|---|
Rated Capacity | 500kg,1/2/3/5/10/20/30t | |
Accuracy Class | C3 | |
Rated Output | 2.0±0.1%mv/v | |
Non-linearity | ±1% F.S | |
Creep（30min） | ±1% F.S | |
Input Impedance | 702±10Ω | |
Output Impedance | 702±2Ω | |
Operation Temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation Recommended | 4~12VDC, Max:15vDC | |
Cable | 4-wire with screen | Exc+(red) Exc-（black） Sig+（green） Sig-（white） |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Light railway scale, compression testing situation | |
Outline Dimension(mm)
CAP/SIZE | A | D | M | H1 | H2 | H3 | B1 | B2 |
500kg,1t,2t,3t | 29 | 11 | 16 | 3 | 34.8 | 18 | 138 | 112 |
5,10t | 39 | 13 | 32X2 | 6.4 | 47.8 | 20 | 160 | 130 |
20,30t | 50.4 | 18 | 39X3 | 6.4 | 57.2 | 25 | 170 | 133 |
Rated Capacity | 500kg,1/2/3/5/10/20/30t | |
Accuracy Class | C3 | |
Rated Output | 2.0±0.1%mv/v | |
Non-linearity | ±1% F.S | |
Creep（30min） | ±1% F.S | |
Input Impedance | 702±10Ω | |
Output Impedance | 702±2Ω | |
Operation Temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation Recommended | 4~12VDC, Max:15vDC | |
Cable | 4-wire with screen | Exc+(red) Exc-（black） Sig+（green） Sig-（white） |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Light railway scale, compression testing situation | |
Outline Dimension(mm)
CAP/SIZE | A | D | M | H1 | H2 | H3 | B1 | B2 |
500kg,1t,2t,3t | 29 | 11 | 16 | 3 | 34.8 | 18 | 138 | 112 |
5,10t | 39 | 13 | 32X2 | 6.4 | 47.8 | 20 | 160 | 130 |
20,30t | 50.4 | 18 | 39X3 | 6.4 | 57.2 | 25 | 170 | 133 |
