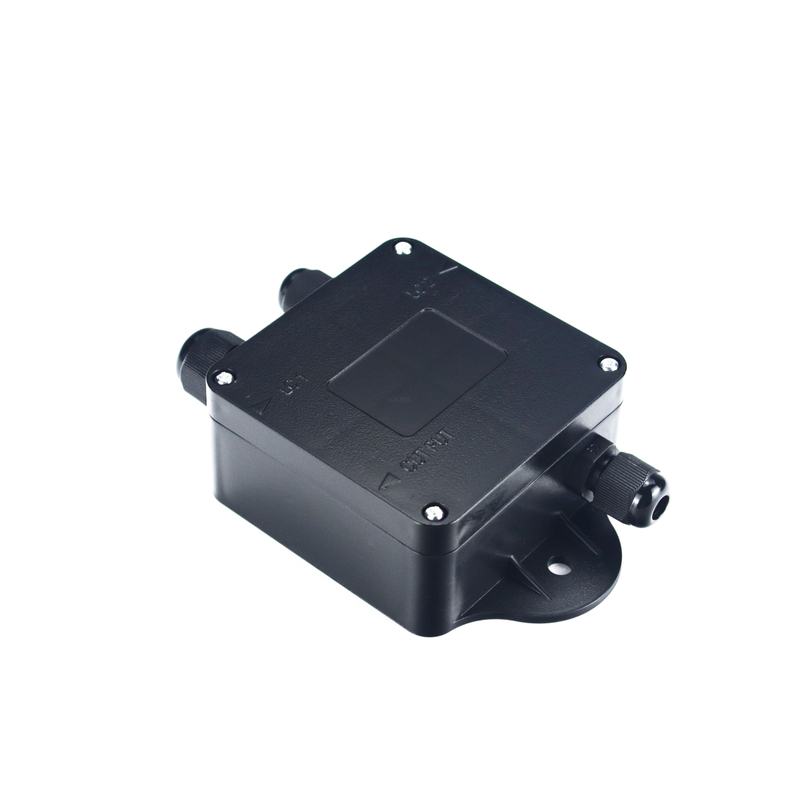

LOCOSC LP7381 Weighing/weight Transmitter

Weight transmitter, also known as a weight transmitter, is mainly used to convert the weight signal collected by sensors into standard industrial signals such as 4-20mA, 0-10V, etc. It is compatible with PLC control systems and weighing instruments and is applied in industrial production, logistics warehousing, ingredient control and other fields.

  • LP7381

  • LOCOSC

  • -10~+40℃

  • -10~+40℃

  • china

  • LP7831 weight transmitter.jpg

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

LP7831 Digital Load Cell Weight Transmitter


★ Output:4~20mA

★ Linearity:1%

★ Maximum load resistance:Typical 250Ω ,0Ω ~500Ω(A supply voltage below 10VDC may reduce the permissible load resistance)

★ Zero Range:4mA±0.2mA

★ Calibration Methods:Zero Balance and linear output are adjusted via 4~20mA.

★ Power Supply:8~30VDC Wide Voltage Input

★ Current Consumption:: 14mA

★ Power Consumption: <1W

★ Load cell excitation voltage: 5V drives one load cell

★ Load Cell Rated Output:1mV/V ~ 3mV/V



Weight transmitter


Operating Temperature Range:-10℃~+40℃


Housing Material:Plastic


Size:125*80*40mm



Mounting Hole Spacing:100mm

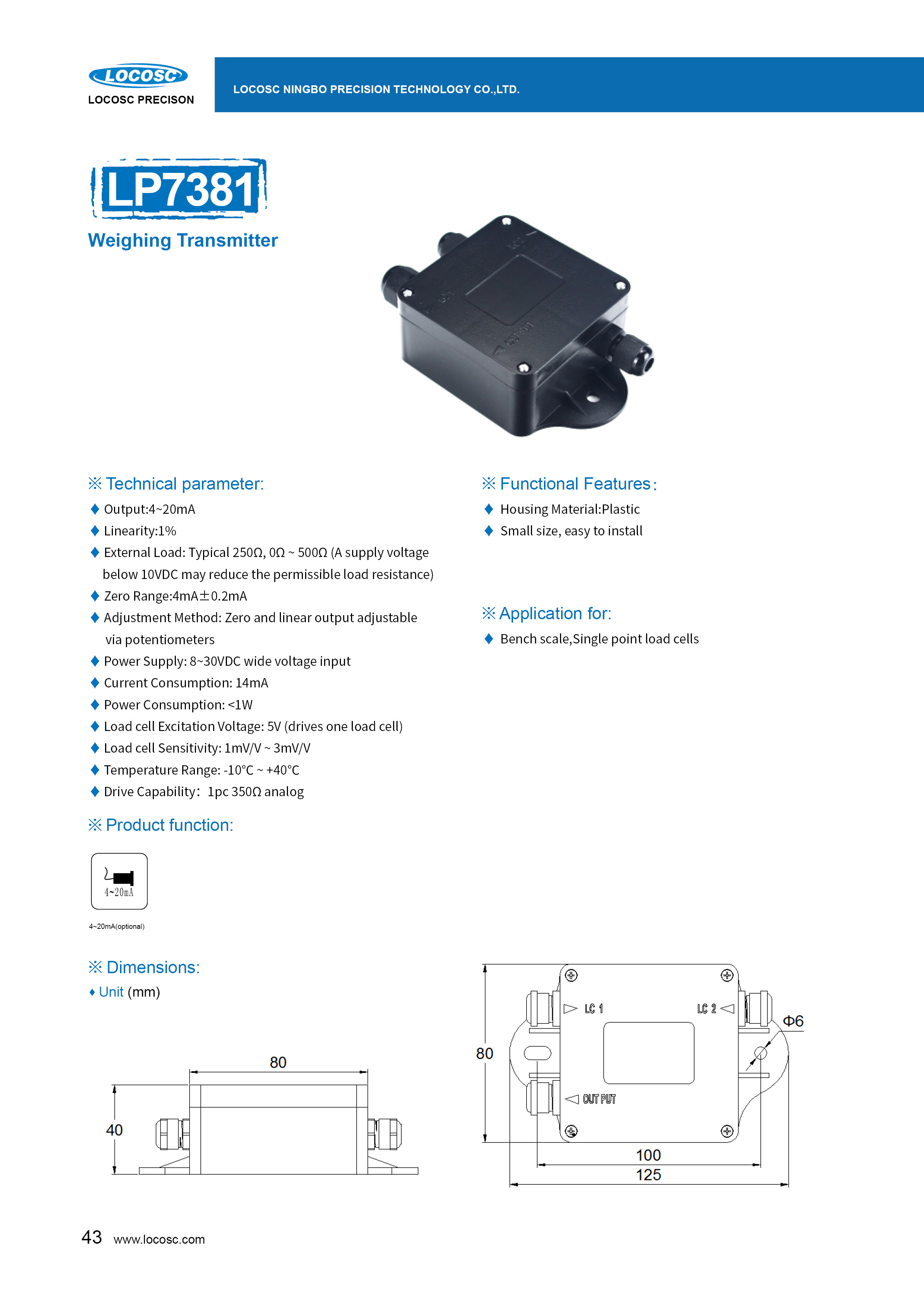

LP7831 weight transmitter

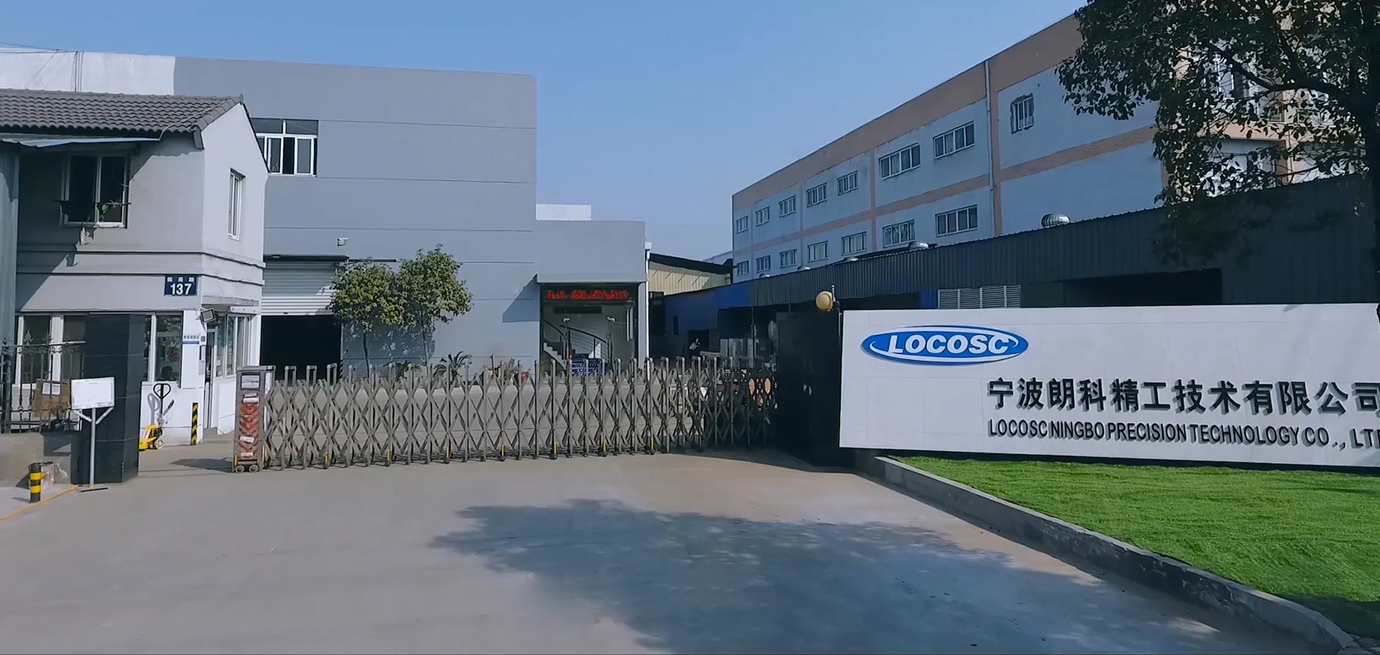

  Since our founding in 2007, we have grown into a globally recognized leader in weighing technology solutions. With 500+ employees across our operations, we combine innovation, precision, and reliability to serve industries worldwide.
