LP7655
LOCOSC
| Quantity: | |
|---|---|

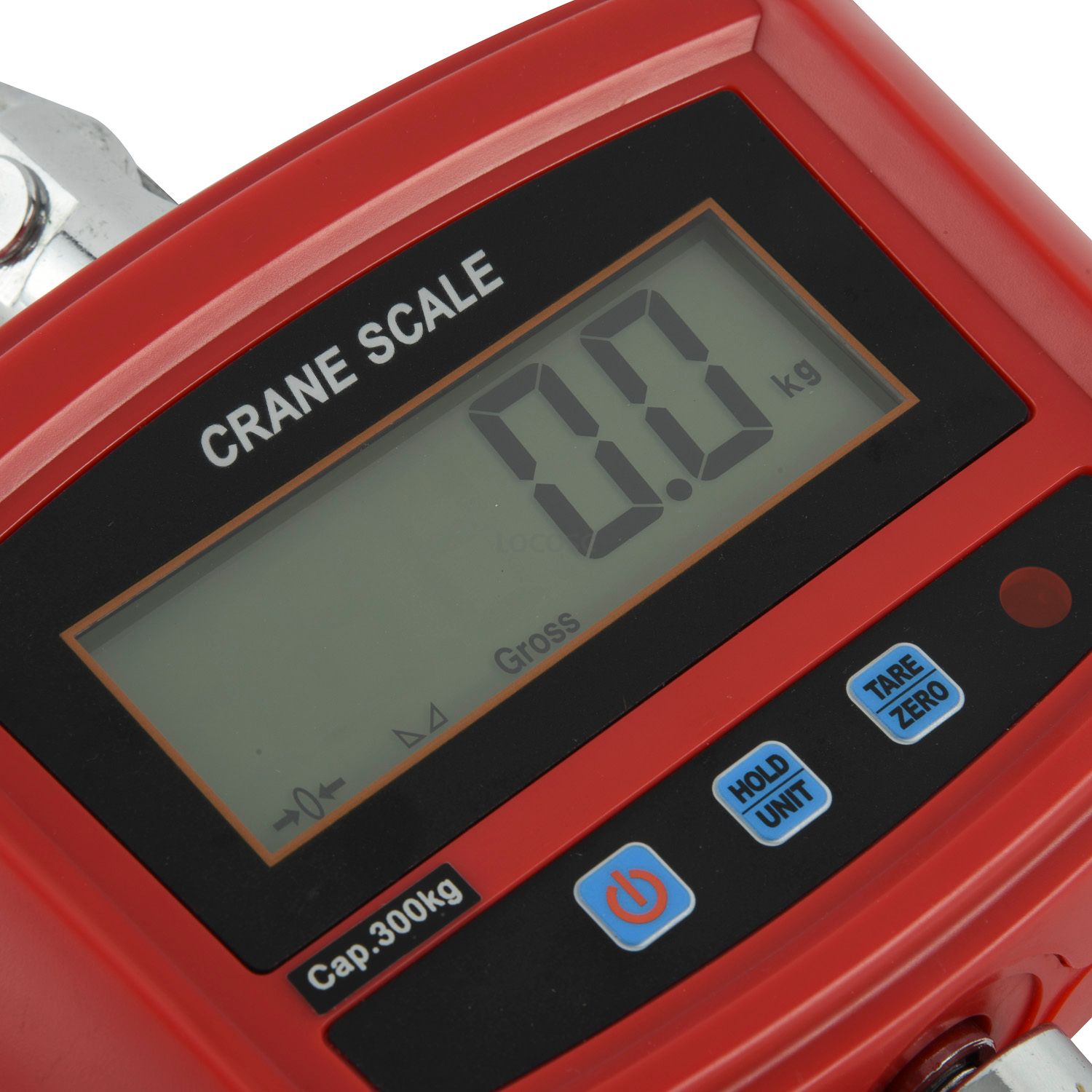

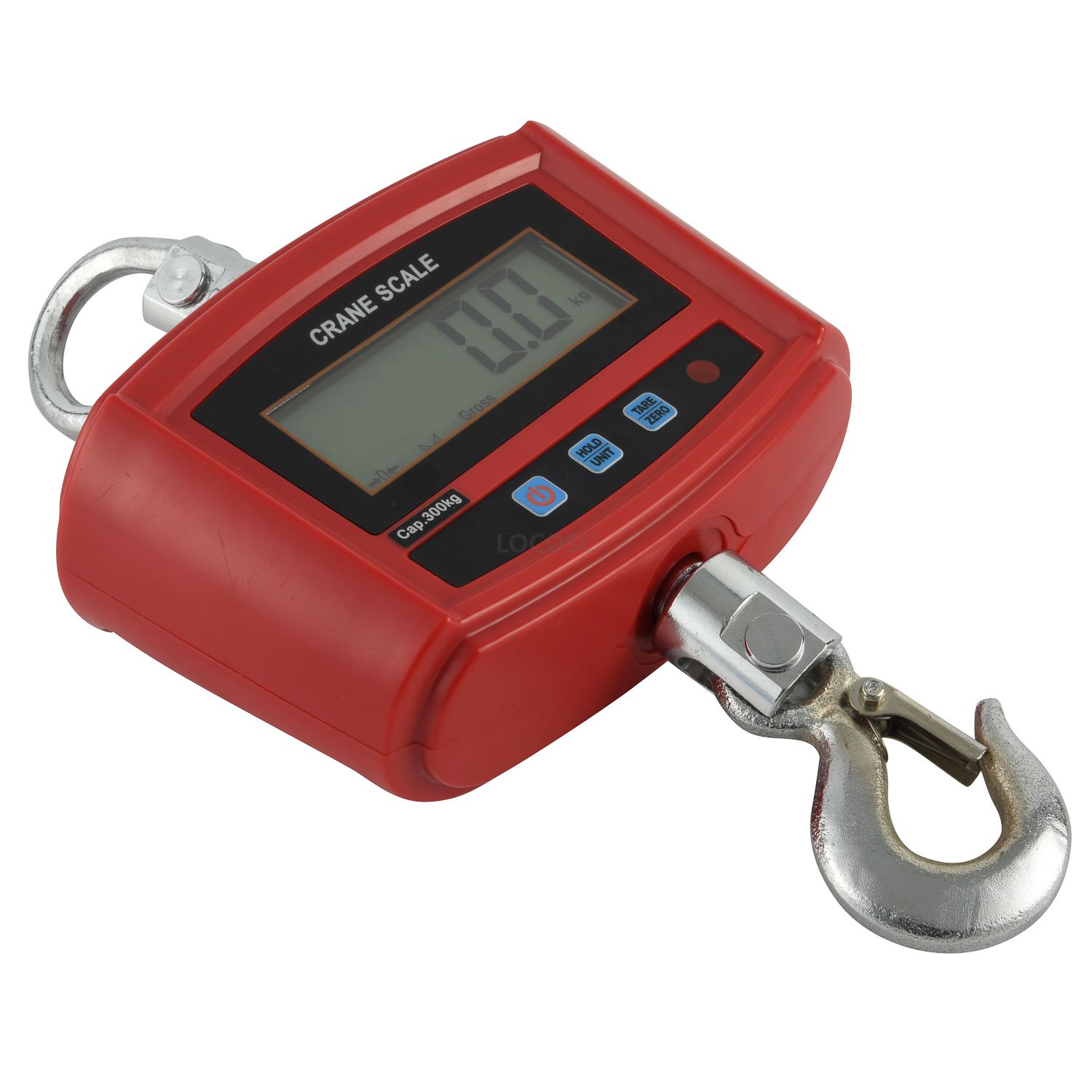

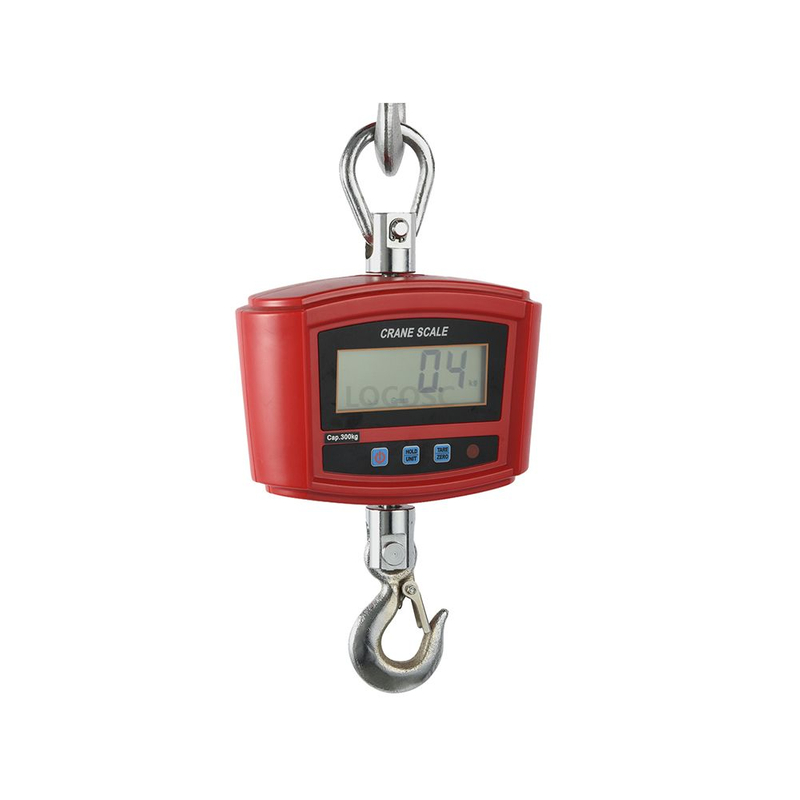

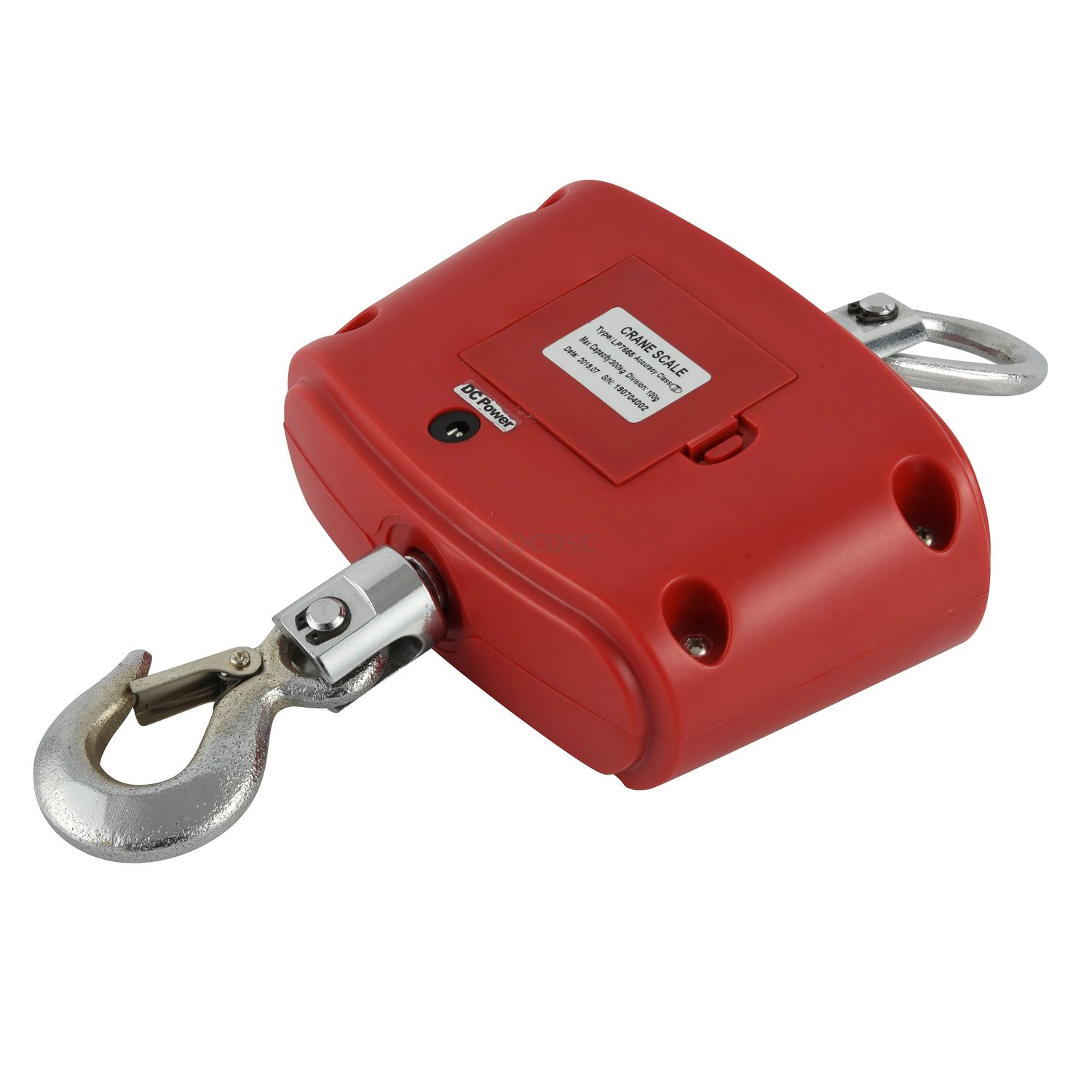

LP7655 Light Duty Electronic Digital Crane Scale User Manual
Feature:
Plastic enclosure

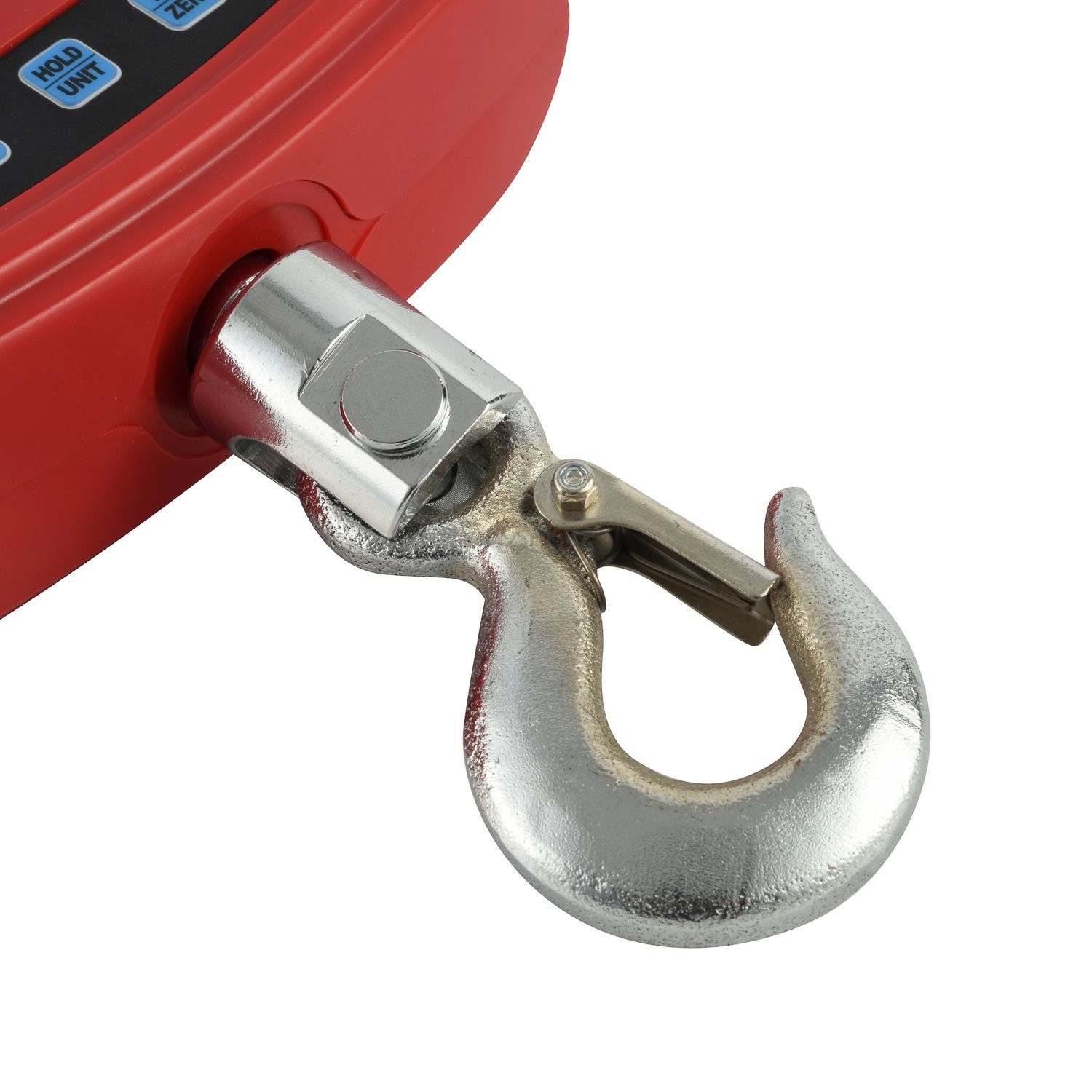

Alloy steel shackle
Mini portable design
Function：
Zero
Hold
Low vottage auto power-off
Battery supervision
Overload alarm
Kg/Lb/N conversion
Specifications:
Accuracy class:OIMLⅢ
Tare range:100%F.S
Zero range:2%F.S
Safe overload:150%F.S
Ultimate overload:300%F.S
Overload alarm:100%F.S+9e
Battery life:＞80h
Temperature range: -10°C~40°C
Technical info:
5 digital LCD display, height 30.5mm
Capacity：150kg,300kg, 500kg
Configuration table:

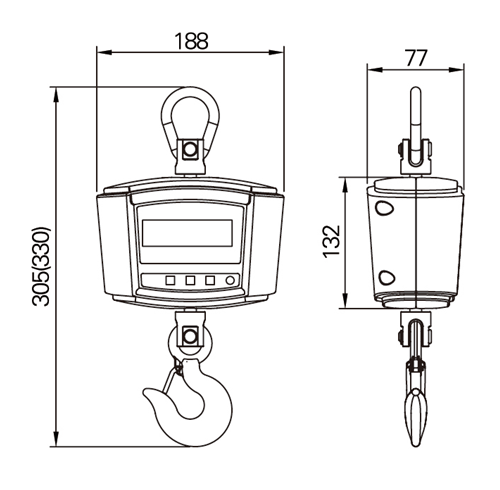

| Item | Model | Max.cap(kg) | Div(kg) | Size:W*L*H*(MM) | Weight(kg) |
| LP7655-015 | OCS-S1-015 | 150 | 0.05 | 188*77*305 | 1.4 |
| LP7655-030 | OCS-S1-030 | 300 | 0.1 | 188*77*305 | 1.4 |
| LP7655-050 | OCS-S1-050 | 500 | 0.2 | 188*77*305 | 1.4 |
| LP7655-1 | OCS-S1-1 | 1000 | 0.5 | 188*77*330 | 1.6 |
