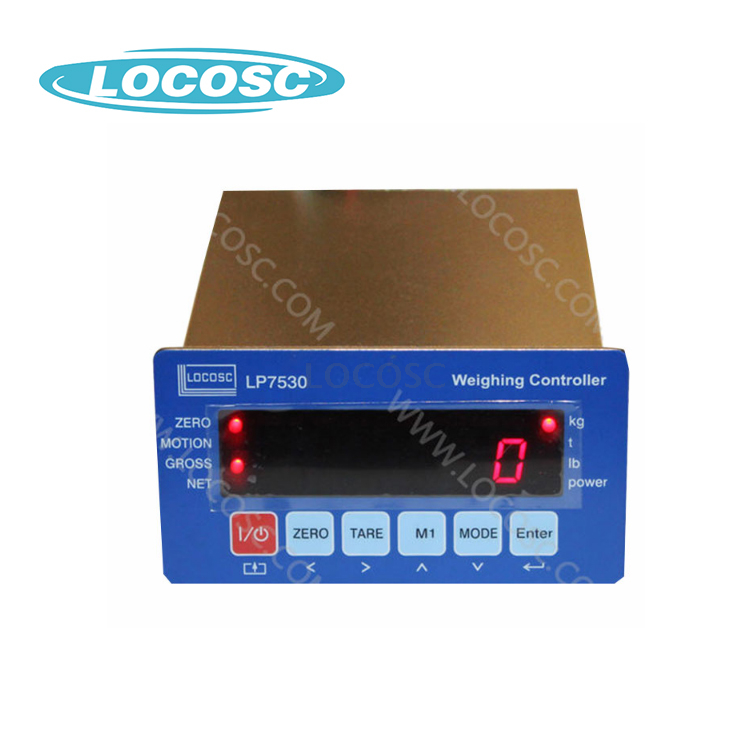

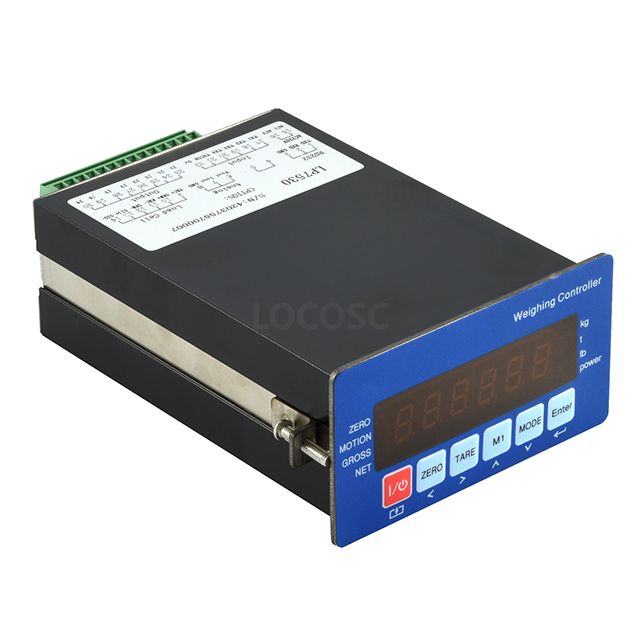

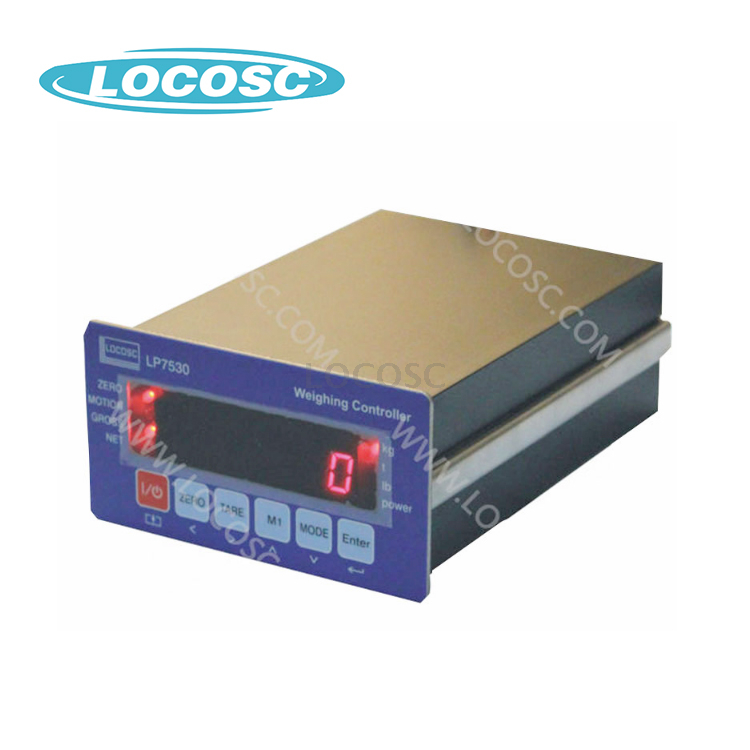

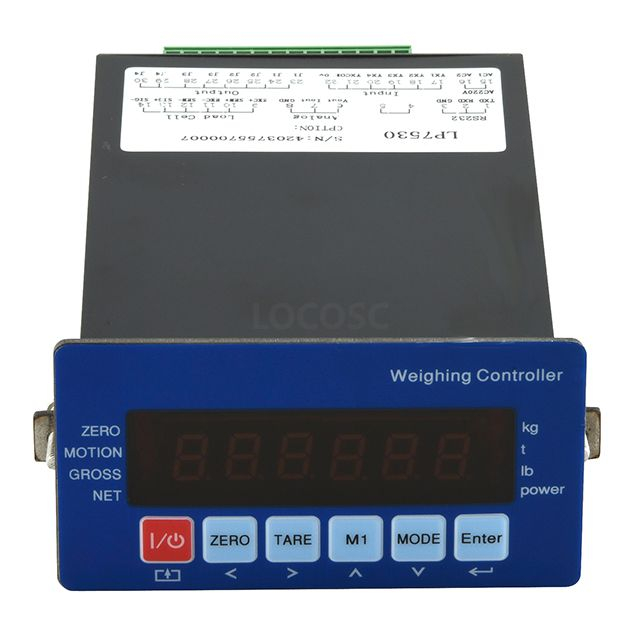

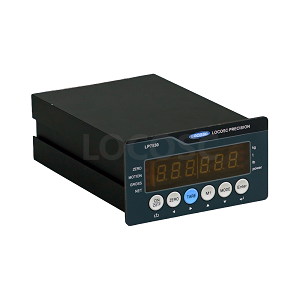

New Type LED Weighing Indicator Display Controller

Product Description

4~20mA weighing controller indicator

Aluminum alloy housing, application for weighing control, can be connect with PLC,PC & DCS system.

Technique

• Display: 6-digits 10mm LED display

• Accuracy class: OIML III

• AD conversion: Σ-△, 24 bit

• Input voltage:-3mV~30mV

• Resolving: display 30,000,internal code 2,000,000

• Excitation voltage:DC5V

• Minimum resolution:1μV/e

• Driving ability:1~8 350Ω analog load cell(s)

• Load cell interface: 6-wire, automatic length compensation

• Power Supply: AC220V, 50/60Hz or DC24V

• Work environment: -10℃~+40℃, ≤85%RH

Features:

• Aluminum alloy housing

• Second display interface: serial output, isolated RS232

• Communication interface: RS232/RS485, baud rate 600~9,600 (optional)

• Universal Modbus-RTU, can be connected to PLC, touch screen, DCS,etc.

• Print interface: shared with serial interface, can be connected to serial printer

• Relay output: 4-way photoelectric isolated input

• Analog output: 4-20mA (optional)

Dimensions(mm):

•   product dimensions: 45*92*153

•   panel opening dimensions: 46*93

Application for:

• Quantitative scale, filing scale, batching scale, hopper scale, weight transmission, etc.
