Weighing bridge
The Weighing bridge platform adopts the frame structure of steel welded, the whole rigidity is high, the torsional resistance is strong, and the high-precision bridge weighing sensor and the performance is superior, the function is rich, the interface weighing the display instrument and so on together constitute the weighing system.
Its characteristics are high accuracy, good reliability, high degree of intelligence, adaptability, installation and maintenance easy. Can be widely used in various industries of national economic construction, the bulk of the goods weighing the vehicle weighing.

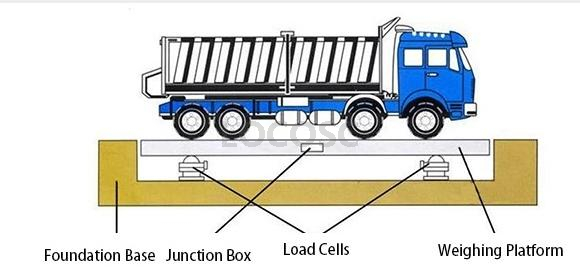

Product display
Structural features
Modular,standardized，serialized，platform，multiple，combinations；
Excavation or no-excavation installation，self-reset structure；
Standard steel plate，reasonable design，strong rigidity；
Gas shielded welding，surface shot blasting，anti-corrosion；
Automatic welding
 |  |
Product function
Weighing structure：U-beam，channel steel and H-beam；
Length of load platform：6~24 meters；
Width of load platform：3 meters，3.2meters；

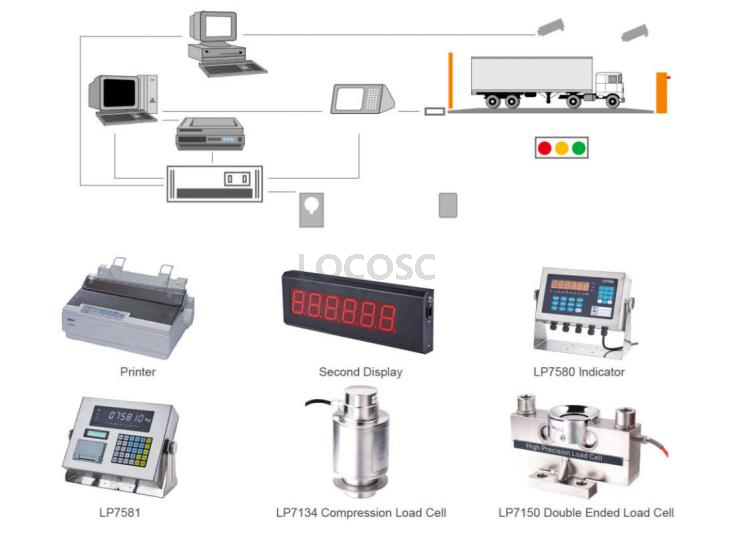

Electrical configuration：analog，digital
Optional：printer，large scree

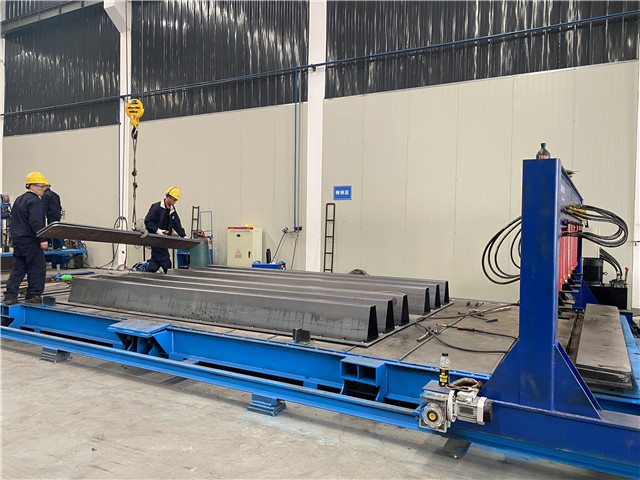

Production Line

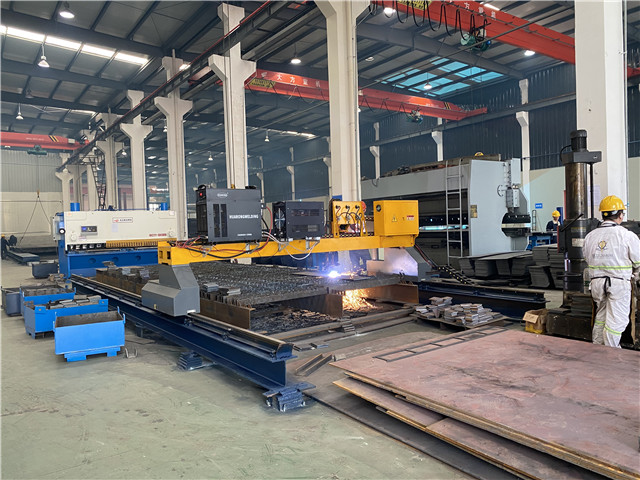

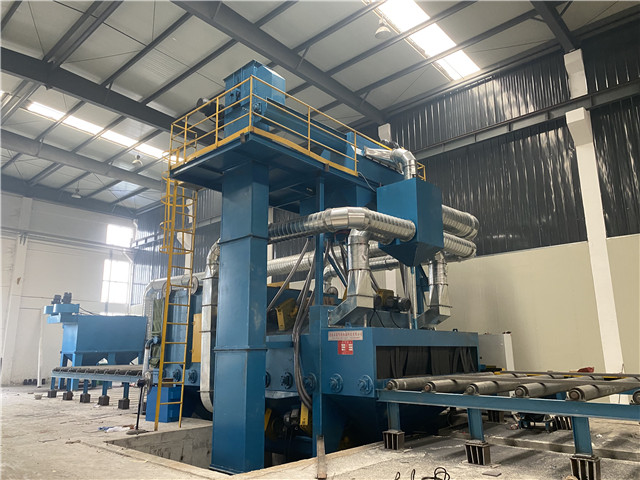

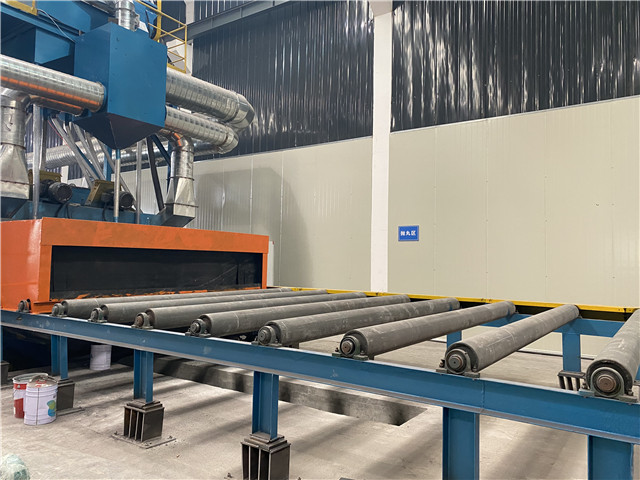

CNC blanking ➡ u-shaped steel forming ➡ scale body SPLICING ➡ pre-bow ➡ automatic welding ➡ Polishing ➡ shot blasting ➡ Spray ➡ Assembly and debugging
Apply of Weighing Bridge
Applicable to metallurgy, mining, chemical, food, logistics and other industries, is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.

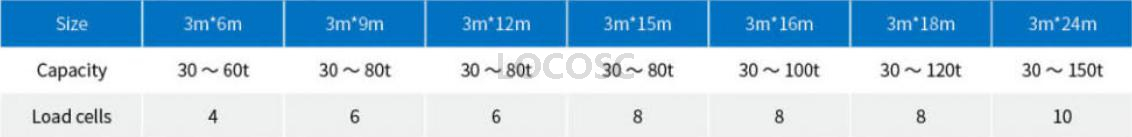

Types & Specification
Installation：

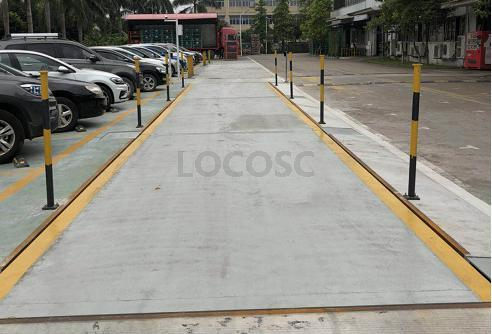

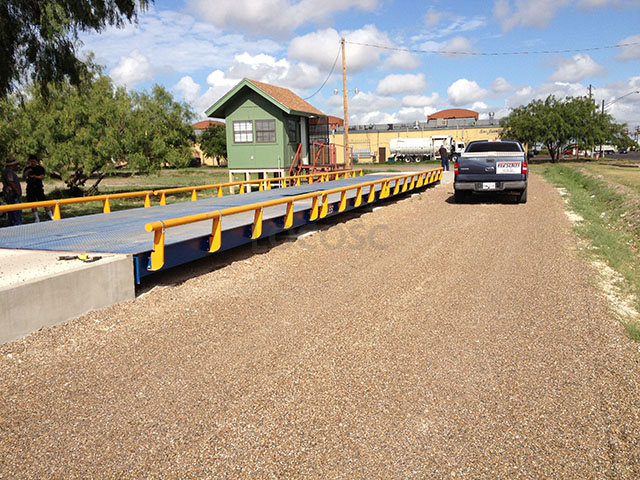

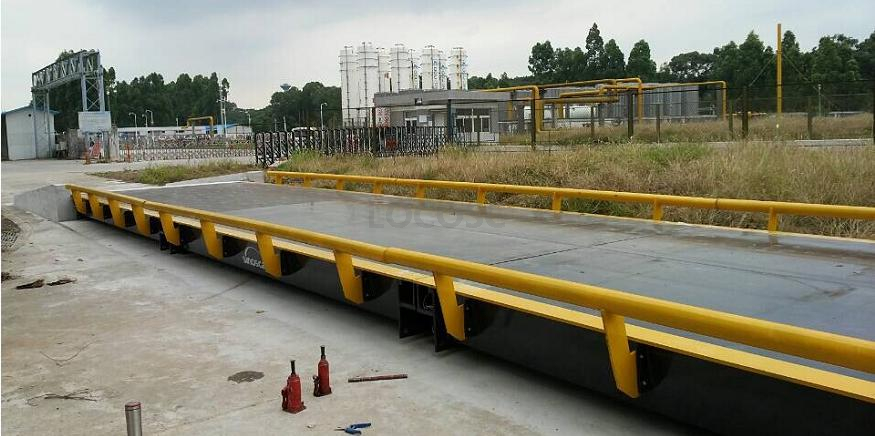

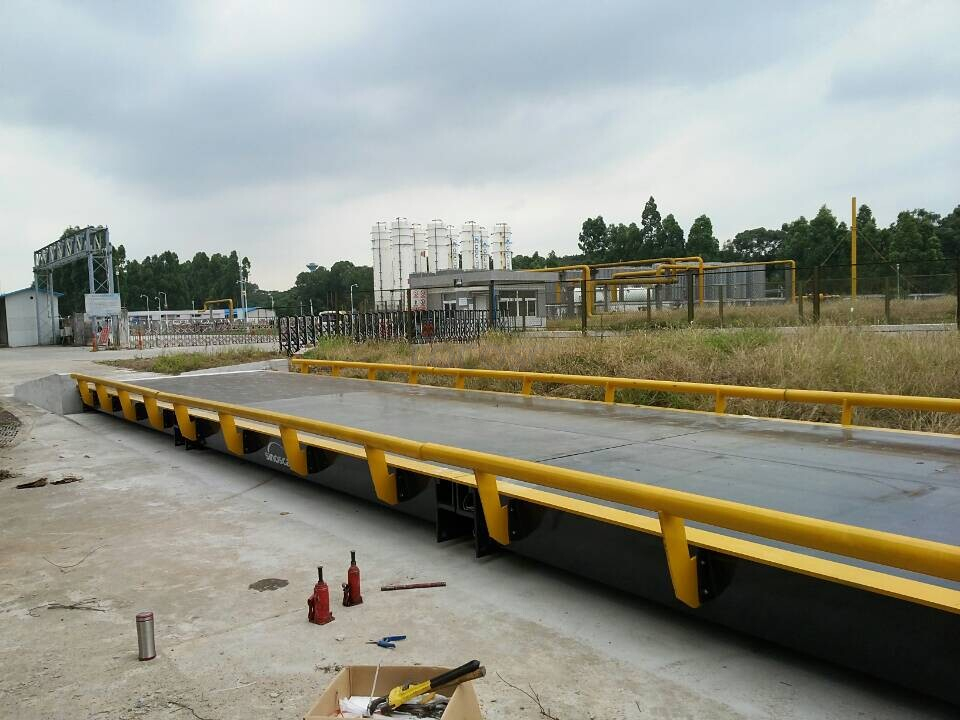

Pit / Same level with ground | Pitless / Above ground |
 |
|

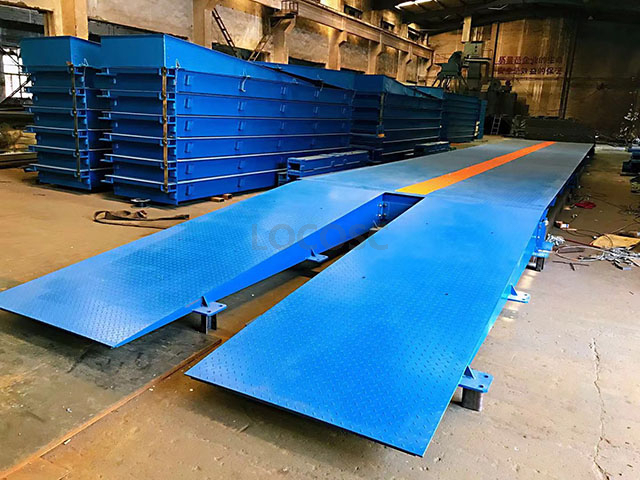

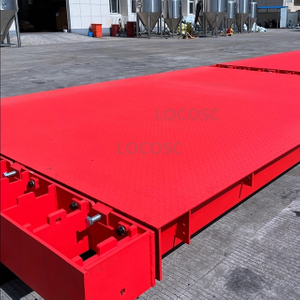

Top Plate: Different thickness optional
Plain type
Checkered Type
