LP7185C
LOCOSC
| Quantity: | |
|---|---|
Product Description
Rated Capacity | 500/1000/1500/2000kg | |
Accuracy Class | D1 | |
Rated Output | 1.5±0.05mV/V 0~5V | |
Non-linearity | ±0.05% F.S | |
Creep（30min） | ±0.03% F.S | |
Input Impedance | 700±10Ω | |
Output Impedance | 700±2Ω | |
Operation Temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation Recommended | 4~12VDC, Max:15vDC | |
Cable | 4-wire with screen | Exc+(red)， Exc-（black） Sig+（green），Sig-（white） |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Pressure measuring overload limiter， tower crane elevator， construction elevator， | |

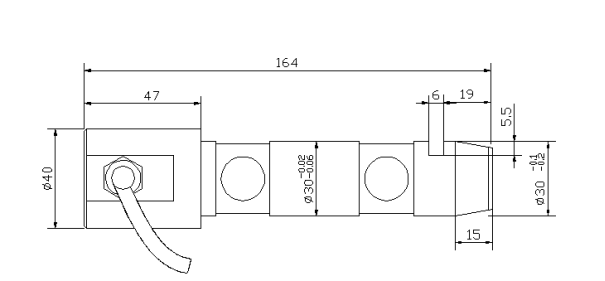

Outline Dimension (mm)

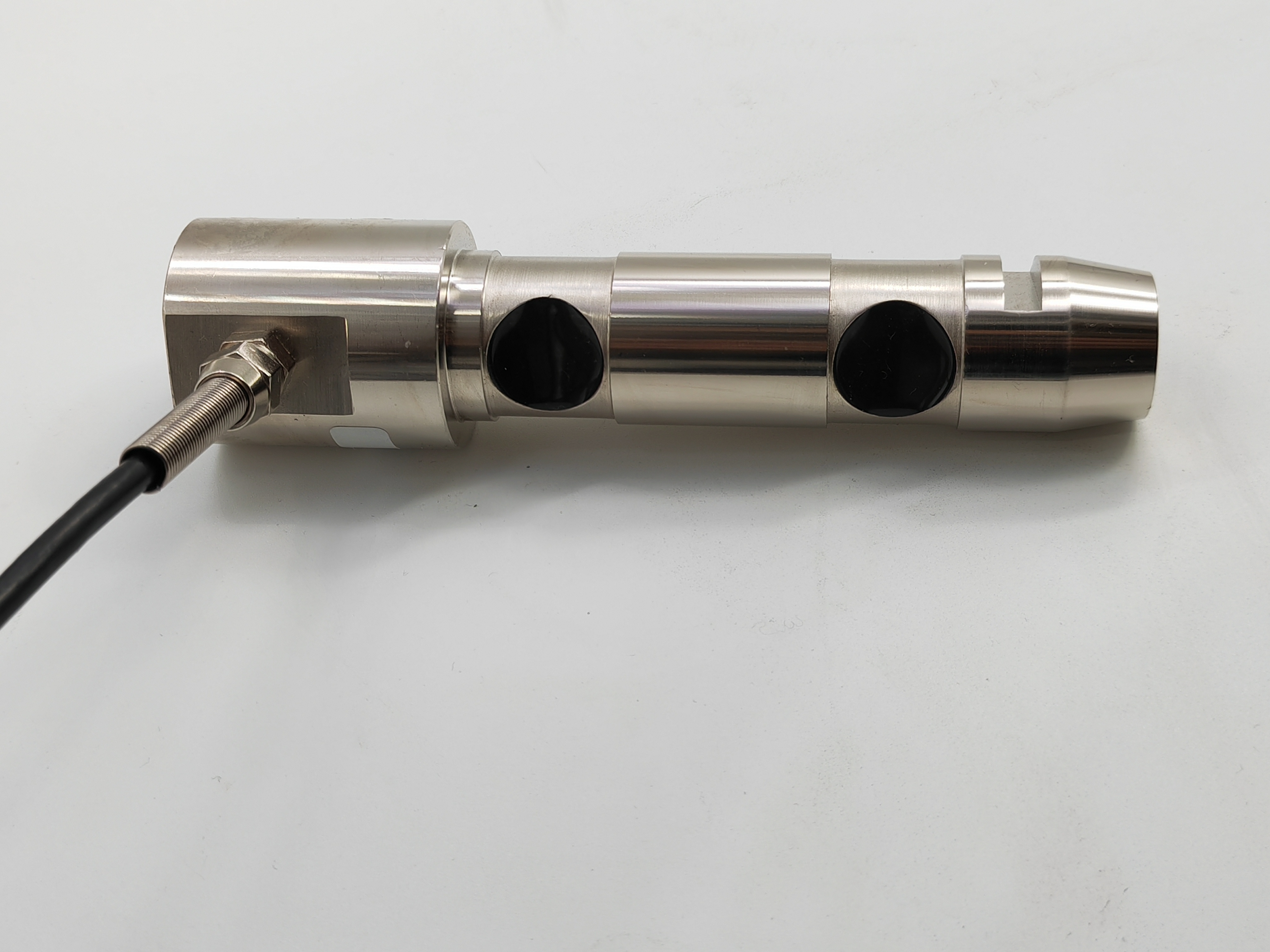

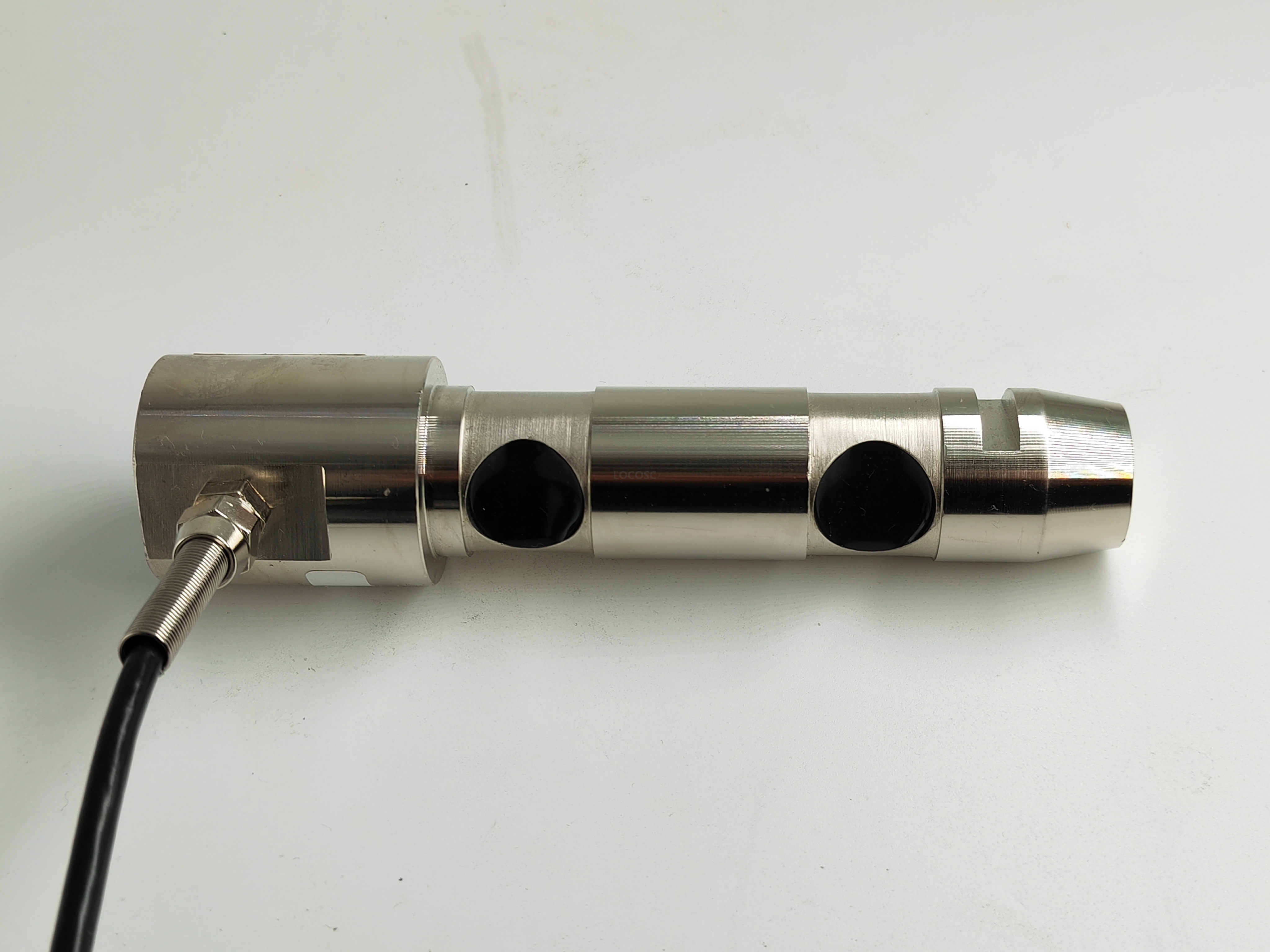

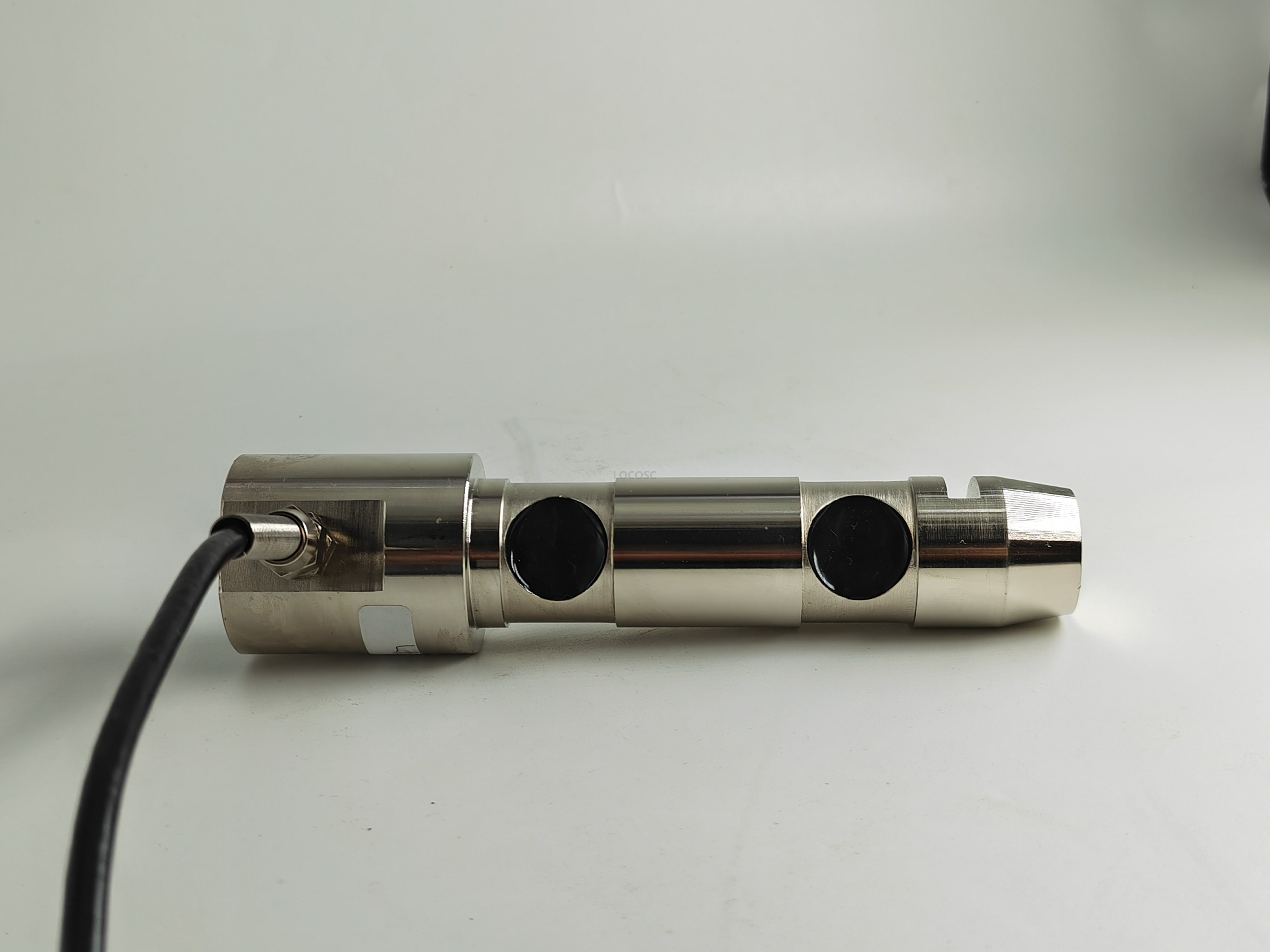

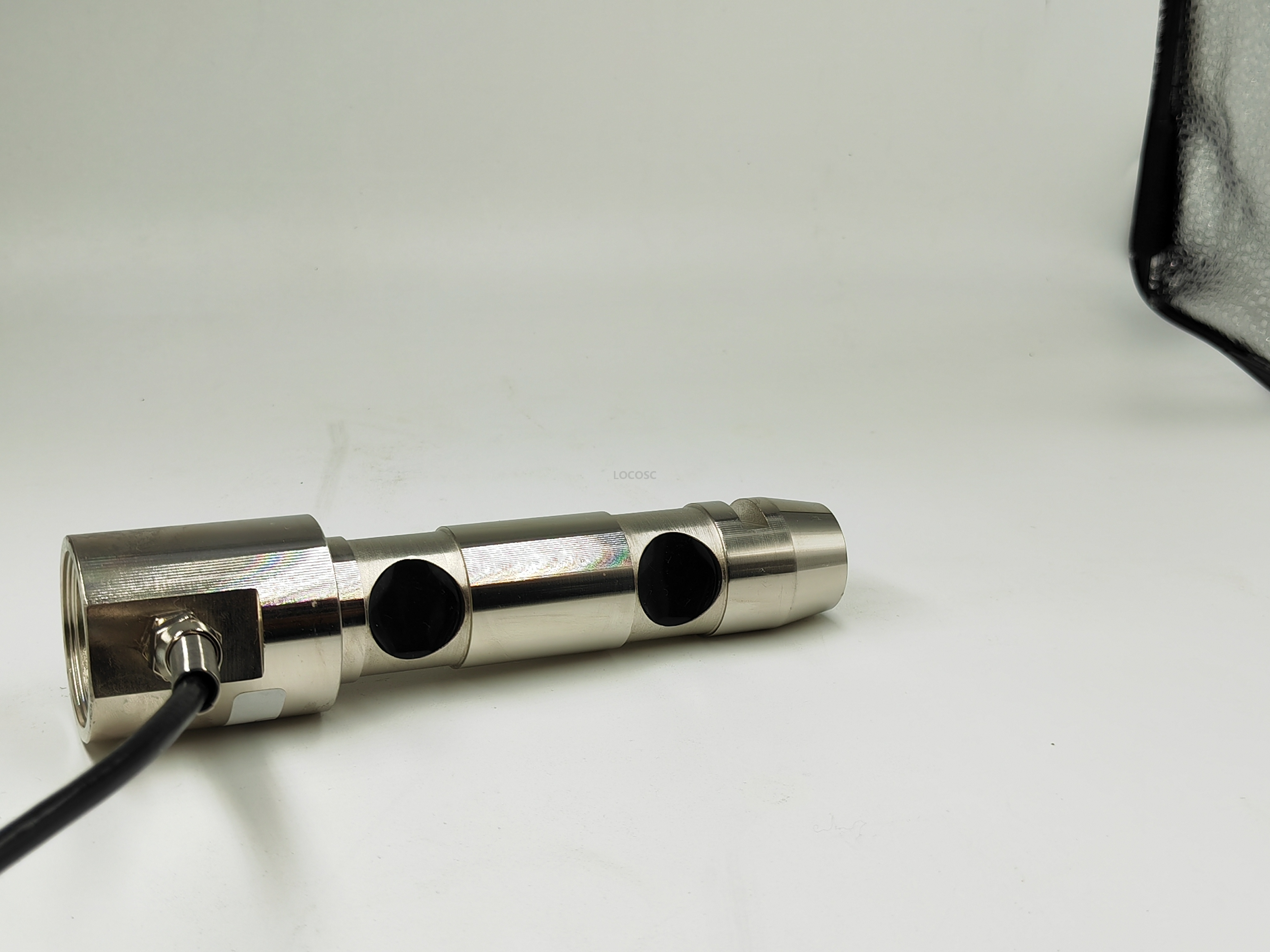

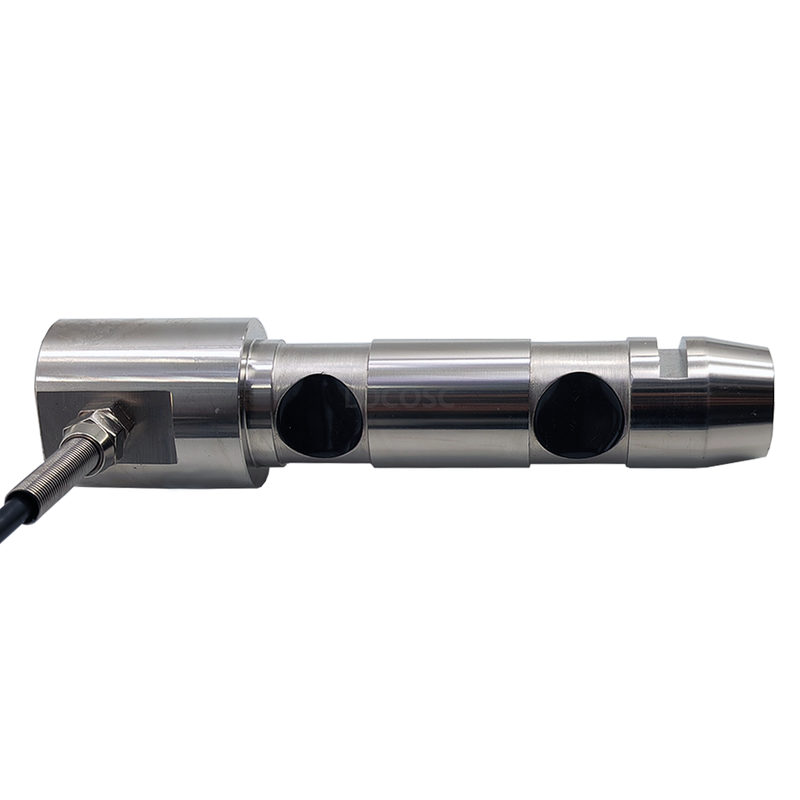

Product Display
Product Description
Rated Capacity | 500/1000/1500/2000kg | |
Accuracy Class | D1 | |
Rated Output | 1.5±0.05mV/V 0~5V | |
Non-linearity | ±0.05% F.S | |
Creep（30min） | ±0.03% F.S | |
Input Impedance | 700±10Ω | |
Output Impedance | 700±2Ω | |
Operation Temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation Recommended | 4~12VDC, Max:15vDC | |
Cable | 4-wire with screen | Exc+(red)， Exc-（black） Sig+（green），Sig-（white） |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Pressure measuring overload limiter， tower crane elevator， construction elevator， | |
Outline Dimension (mm)
Product Display
