LP1516E
LOCOSC
| Quantity: | |
|---|---|
 |  |  |
Product Description

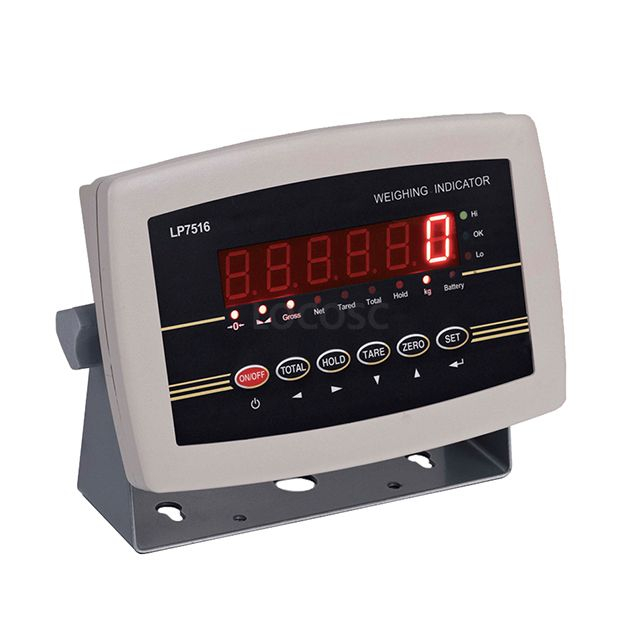

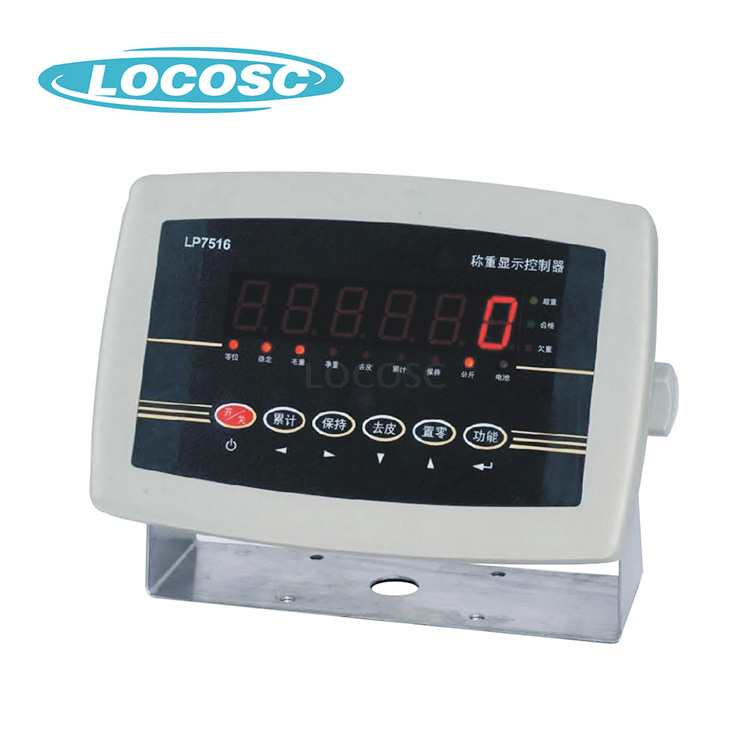

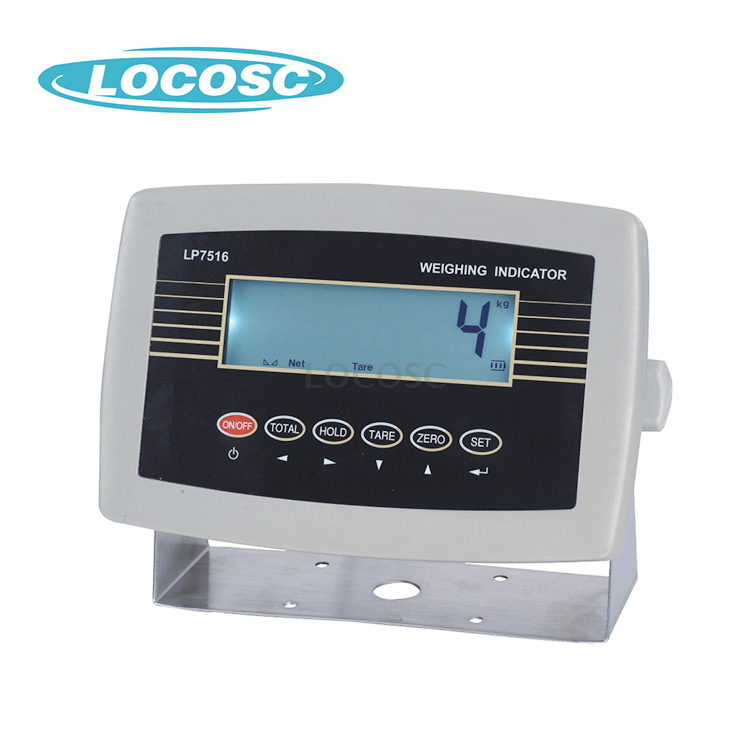

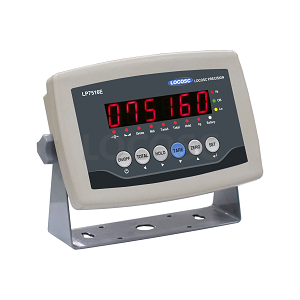

Plastic Scale Display LP7516E
New, highly featured scale display give the range and flexibility to produce the weighing system to suit your application.
pecificiation
| Model | LP7516E Plastic Scale Display |
| Input Sensitivity | 0.5μV/D |
| Loadcell excitation voltage | DC 5V |
| Zero Calibration | 0.05mV ~ 5mV |
| A/D Internal Resolution | 1/2,000,000 |
| A/D External Resolution | 1/3000 1/15,000(NO OIML) |
| A/D Conversion Rate | 10 times/sec |
| Span Calibration | Full Digital Calibration |
| Display | LED (6 digits, H=20mm) LCD (6 digits, H=20mm) |
| Operating Temp. | -10~+40 °C (14°F~104°F) |
| Power Source | AC110/220V 50/60Hz or built-in 4V/4Ah lead acid battery |
| Dimension | 220mm(L) x 85mm(W) x 160mm(H) |
| Weight | 1kg |
Features
* General weighing display
* 6 wire or 4 wire loadcell support
* Serial port RS232
* PC command mode
* Stainless steel bracket
| | |
Product Description
Plastic Scale Display LP7516E
New, highly featured scale display give the range and flexibility to produce the weighing system to suit your application.
pecificiation
| Model | LP7516E Plastic Scale Display |
| Input Sensitivity | 0.5μV/D |
| Loadcell excitation voltage | DC 5V |
| Zero Calibration | 0.05mV ~ 5mV |
| A/D Internal Resolution | 1/2,000,000 |
| A/D External Resolution | 1/3000 1/15,000(NO OIML) |
| A/D Conversion Rate | 10 times/sec |
| Span Calibration | Full Digital Calibration |
| Display | LED (6 digits, H=20mm) LCD (6 digits, H=20mm) |
| Operating Temp. | -10~+40 °C (14°F~104°F) |
| Power Source | AC110/220V 50/60Hz or built-in 4V/4Ah lead acid battery |
| Dimension | 220mm(L) x 85mm(W) x 160mm(H) |
| Weight | 1kg |
Features
* General weighing display
* 6 wire or 4 wire loadcell support
* Serial port RS232
* PC command mode
* Stainless steel bracket
