LP7660 Electronic Portable Truck Weighing Axle Scale

LP7660 Electronic Portable Truck Axle Weighing Scales

LP7660 axle load scale ( pesaje dinamico basculas de puente)  are used in all applications in which it is necessary to quickly and simply weigh very heavy devices with various resting points, such as automobiles, tractors, carts, airplanes, trucks, tankers, containers, etc. These are particularly suitable for creating mobile weighing solutions: thanks to their reduced weight and the ease in moving and placing them, in a few minutes it’s possible to create a weighing station on any type of flat surface.

Main technical features:

l  Accuracy of the platform : 3000e

l  Low profile: only 58mm high

l  Structure in special aluminum, for guaranteeing the lightness as well as sturdiness and long duration in time.

l  Vulcanized antislip rubber in the resting areas, for maximum grip on any type of surface.

l  IP68 stainless steel load cells.

l  Extremely easy and reliable connection of the scale to the weight indicator

l  Very easy to manoeuvre.

l  Fitted with 10m cable and connector for connection to weight indicator.

l  High-definition LCD backlit

l  With built-in printer

l  Waterproof keyboard

l  In dynamic mode, there are two types for options: high accuracy dynamic mode and normal accuracy dynamic mode

Versatile and simple to use

l  LP7660 platforms are an excellent alternative to the classic fixed weighting system (like weighbridges), especially when weighing vehicles, when one needs to:

l  Create weighing stations in a short time and on any surface

l  Check the weight of the material transported by the vehicles

l  Execute an unlimited number of daily weighs, without having to use weighbridges.

l  Weigh for limited periods of time (harvest, crops, etc.).

l  Verify the weight of each single wheel, of each single axle, and all the various weight sums of a vehicle.

l  Weigh in small spaces

Easy to transport

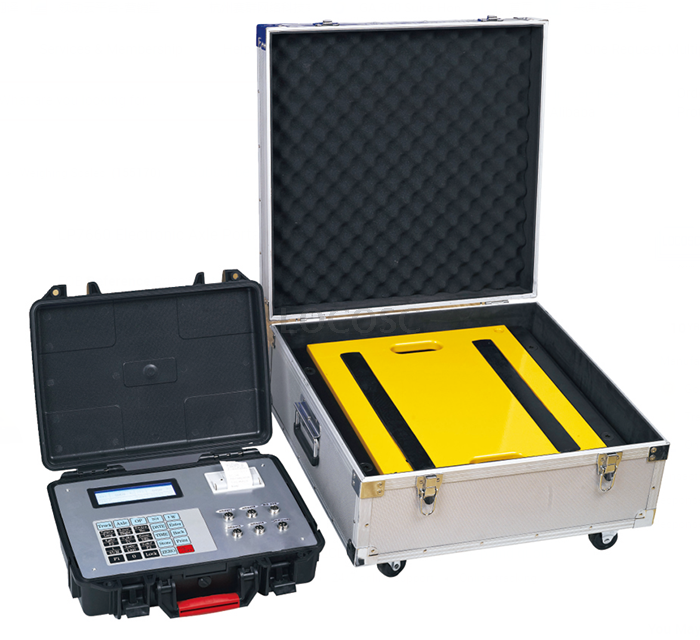

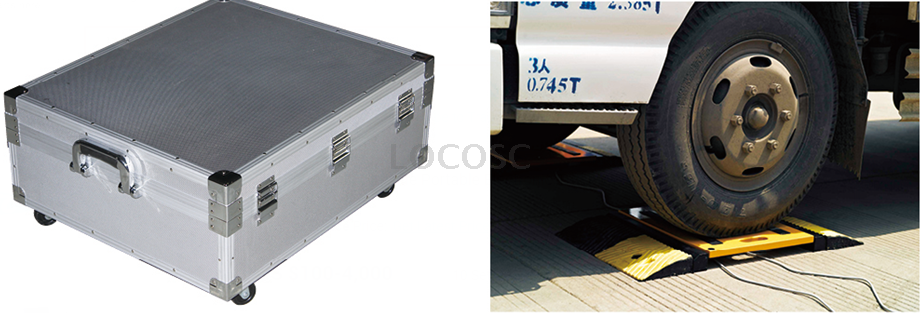

The reduced weight and ergonomic handles make it easy to transport LP7660 platforms; furthermore, the bigger size are fitted with wheels which further simplify their movement.

Suitable for dynamic weighing

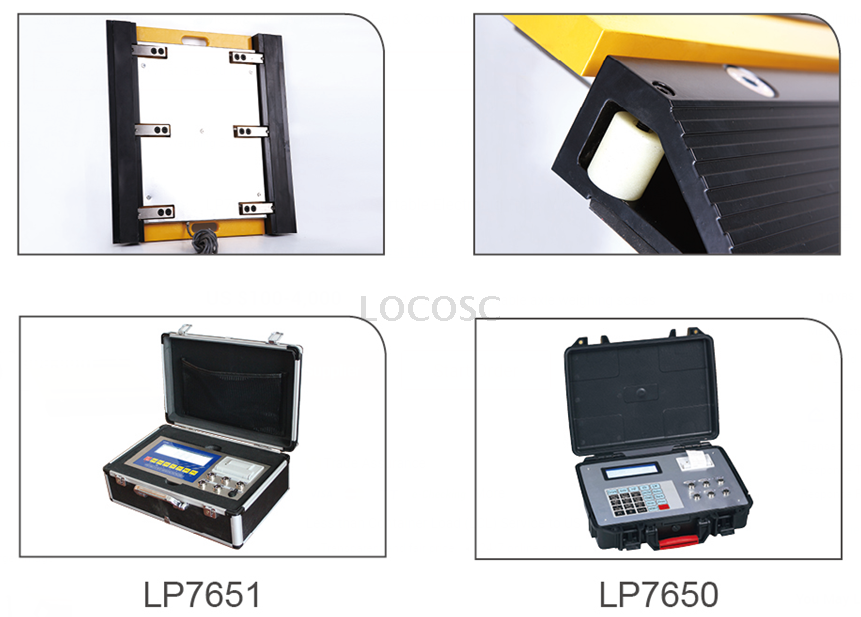

LP7660 combined with a LP7650 indicator, allow to create dynamic weighing systems, with automatic acquisition of the weight of the axles and calculation of the total weight of the vehicle.
