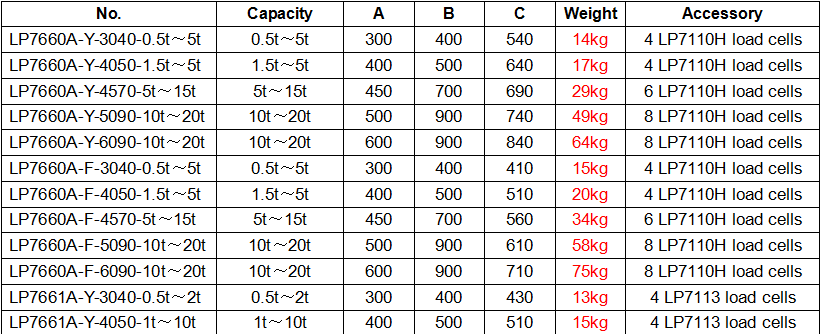

Types & Specifications
 |  |
Types & Specifications
| |

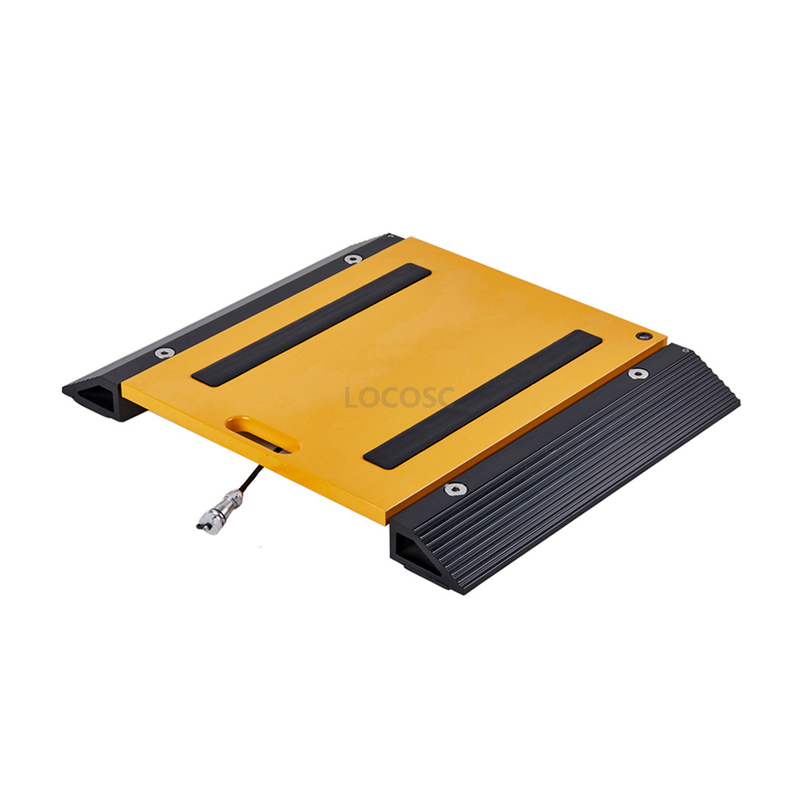

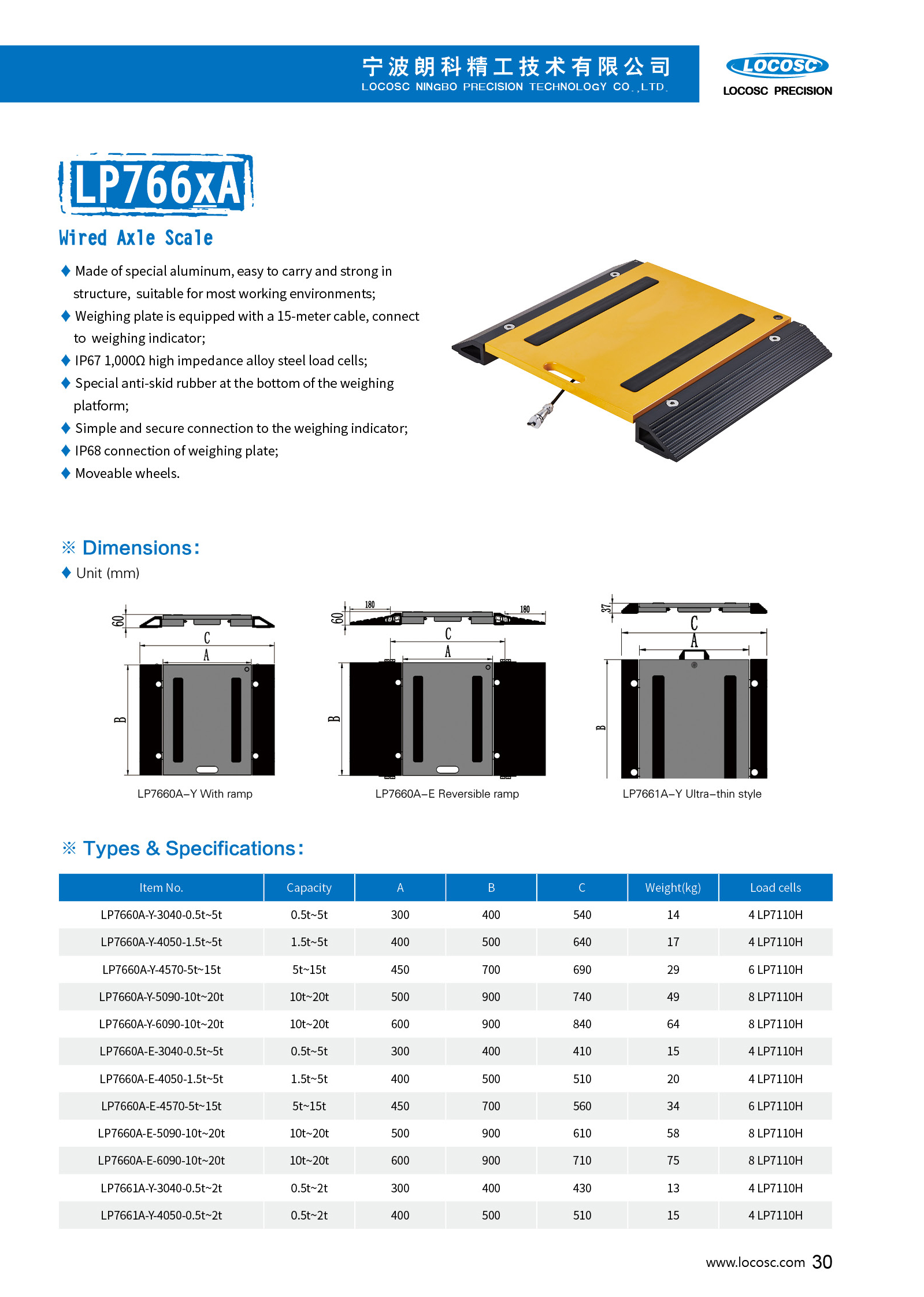

LP766xA
Made of special aluminum, easy to carry and strong in structure, suitable for most working environments;
Weighing plate is equipped with a 15-meter cable, connect to weighing indicator;

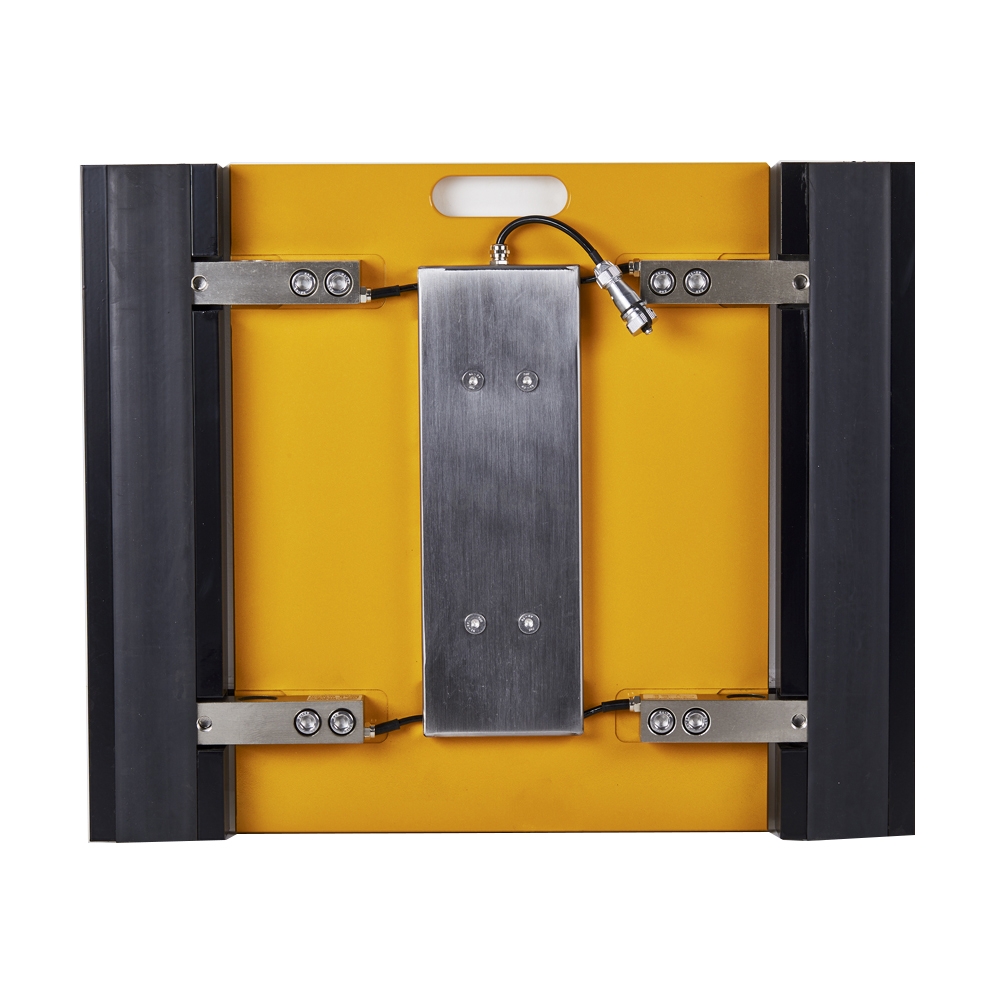

IP67 1,000Ω high impedance alloy steel load cells;

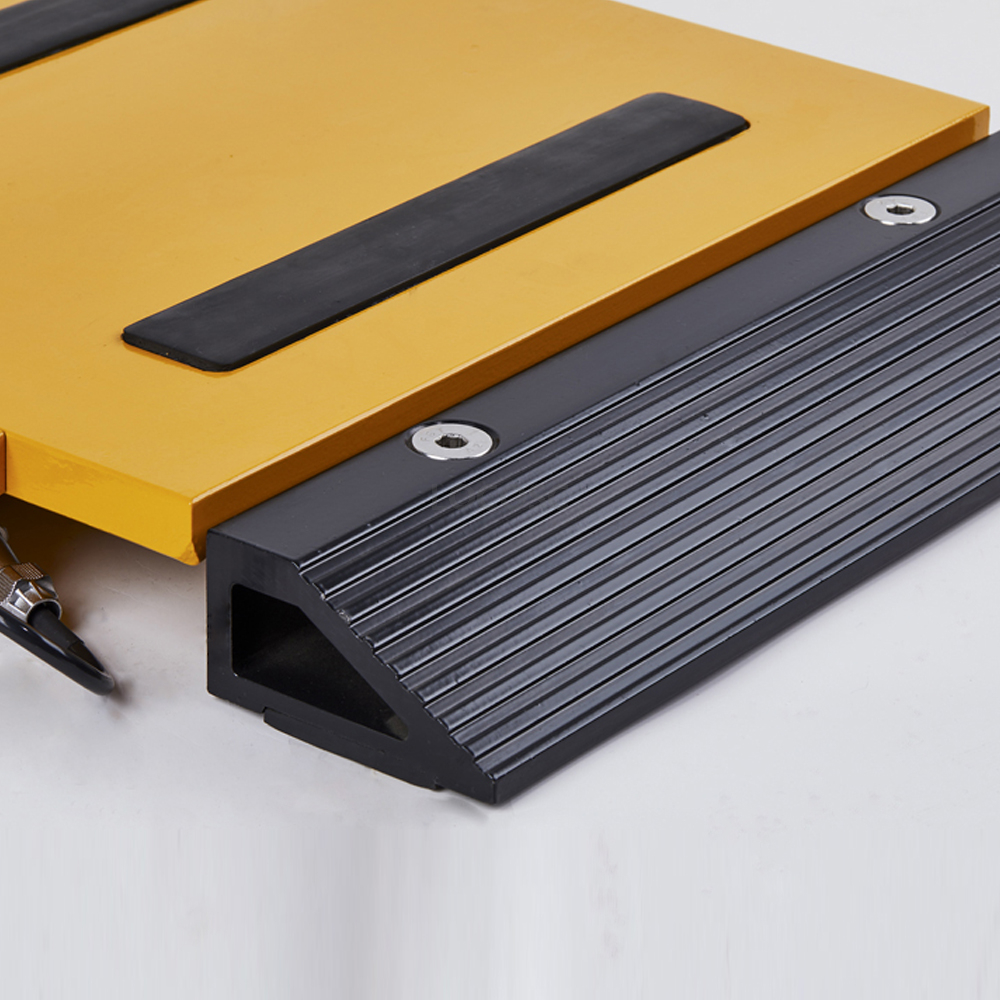

Special anti-skid rubber at the bottom of the weighing platform;
Simple and secure connection to the weighing indicator;
IP68 connection of weighing plate, IP68 aerial linker;
Moveable wheels.
LP766xA
Made of special aluminum, easy to carry and strong in structure, suitable for most working environments;
Weighing plate is equipped with a 15-meter cable, connect to weighing indicator;
IP67 1,000Ω high impedance alloy steel load cells;
Special anti-skid rubber at the bottom of the weighing platform;
Simple and secure connection to the weighing indicator;
IP68 connection of weighing plate, IP68 aerial linker;
Moveable wheels.

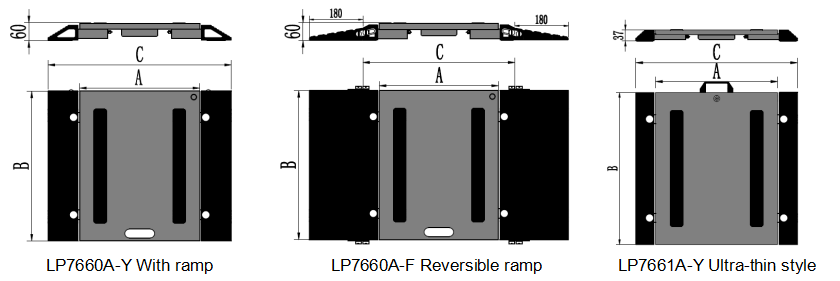

Dimensions
Unit (mm)
Dimensions
Unit (mm)

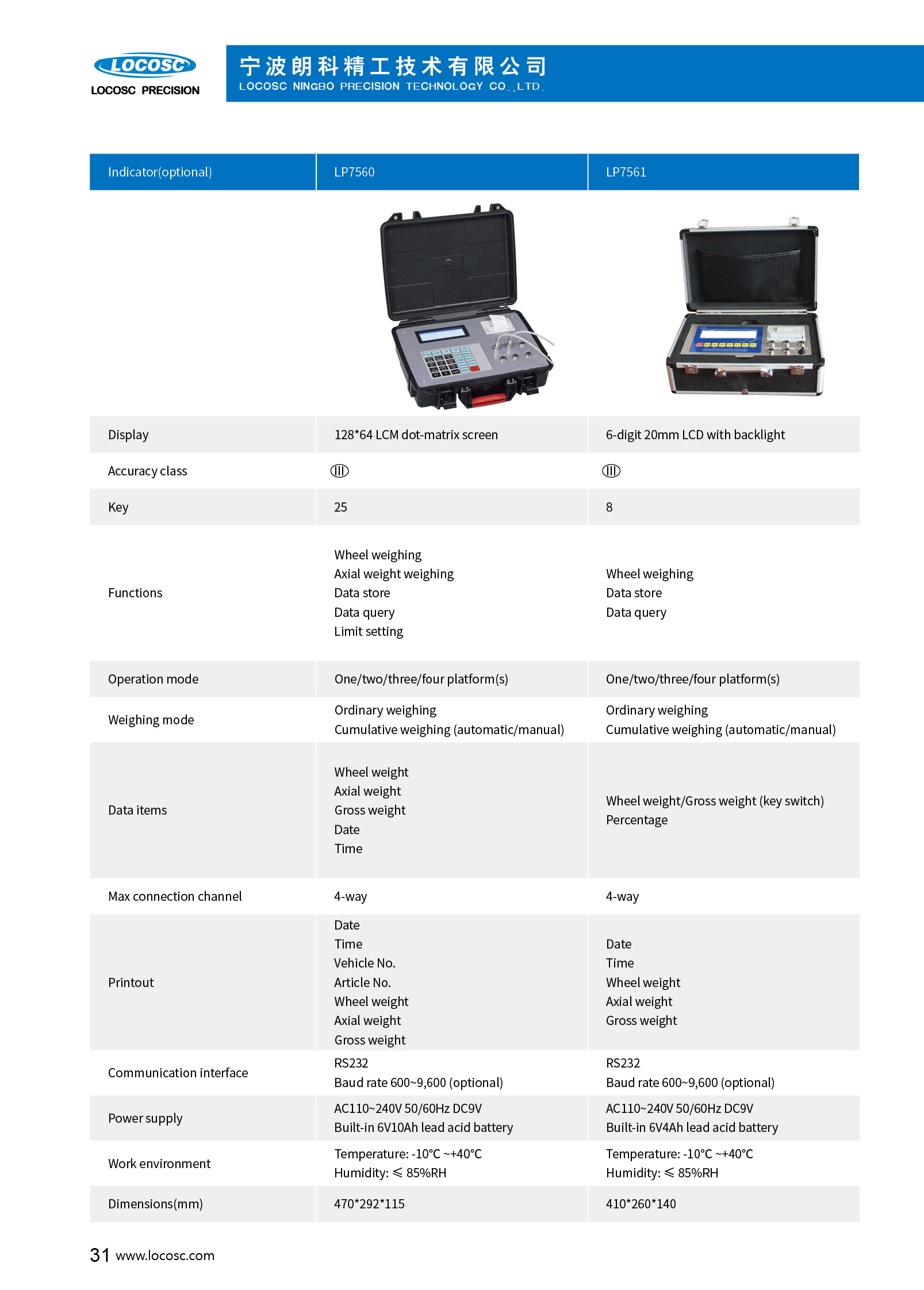

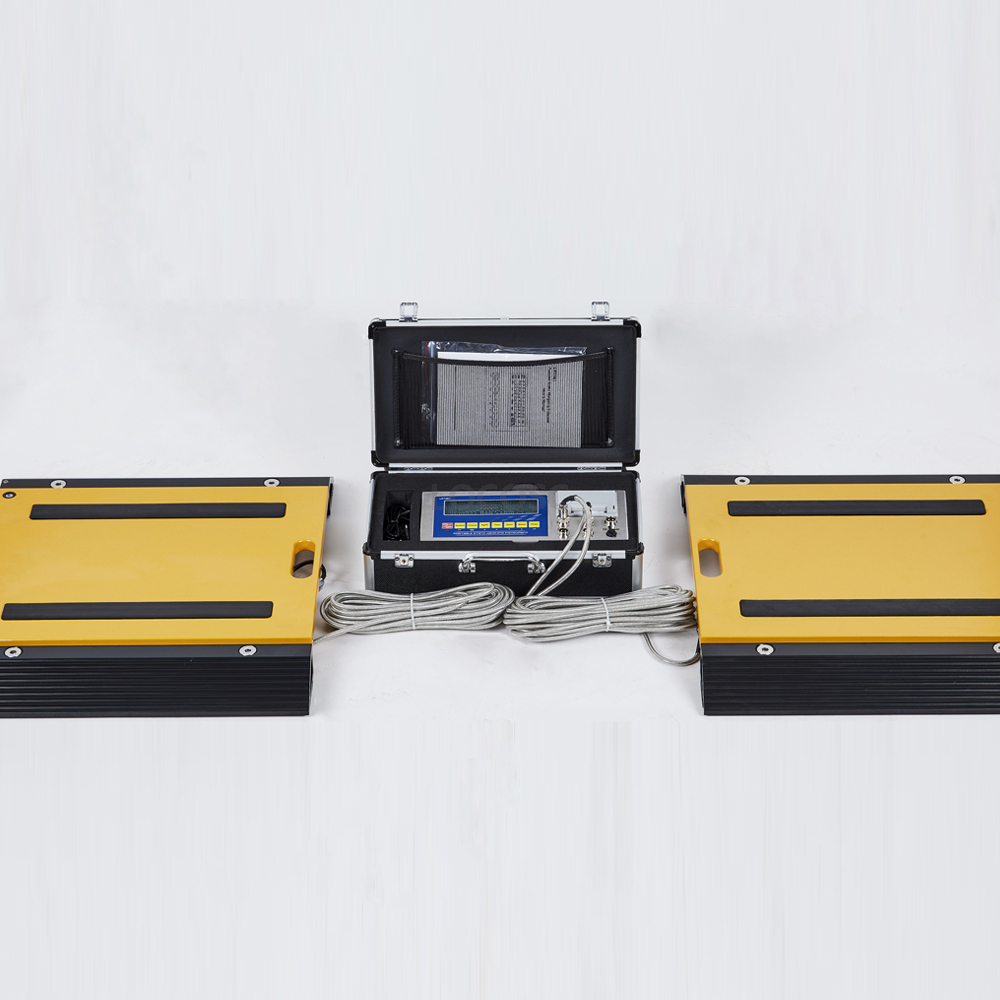

Indicator(optional) | LP7560 | LP7561 |
|
| |
Display | 128*64 LCM dot-matrix screen | 6-digit 20mm LCD with backlight |
Accuracy class | OIML | OIML |
Key | 25 | 8 |
Functions | Wheel weighing Axial weight weighing Data store Data query Limit setting | Wheel weighing Data store Data query |
Operation mode | One/two/three/four platform(s) | One/two/three/four platform(s) |
Weighing mode | Ordinary weighing Cumulative weighing (automatic/manual) | Ordinary weighing Cumulative weighing (automatic/manual) |
Data items | Wheel weight Axial weight Gross weight Date Time | Wheel weight/Gross weight (key switch) Percentage |
Max connection channel | 4-way | 4-way |
Printout | Date Time Vehicle No. Article No. Wheel weight Axial weight Gross weight | Date Time Wheel weight Axial weight Gross weight |
Communication interface | RS232 Baud rate 600~9,600 (optional) | RS232 Baud rate 600~9,600 (optional) |
Power supply | AC110～240V 50～60Hz DC9V Built-in 6V10Ah lead acid battery | AC110～240V 50～60Hz DC9V Built-in 6V4Ah lead acid battery |
Using environment | Temperature: -10℃~+40℃ Humidity: ≤85%RH | Temperature: -10℃~+40℃ Humidity: ≤85%RH |
Dimensions |
Indicator(optional) | LP7560 | LP7561 |
|
| |
Display | 128*64 LCM dot-matrix screen | 6-digit 20mm LCD with backlight |
Accuracy class | OIML | OIML |
Key | 25 | 8 |
Functions | Wheel weighing Axial weight weighing Data store Data query Limit setting | Wheel weighing Data store Data query |
Operation mode | One/two/three/four platform(s) | One/two/three/four platform(s) |
Weighing mode | Ordinary weighing Cumulative weighing (automatic/manual) | Ordinary weighing Cumulative weighing (automatic/manual) |
Data items | Wheel weight Axial weight Gross weight Date Time | Wheel weight/Gross weight (key switch) Percentage |
Max connection channel | 4-way | 4-way |
Printout | Date Time Vehicle No. Article No. Wheel weight Axial weight Gross weight | Date Time Wheel weight Axial weight Gross weight |
Communication interface | RS232 Baud rate 600~9,600 (optional) | RS232 Baud rate 600~9,600 (optional) |
Power supply | AC110～240V 50～60Hz DC9V Built-in 6V10Ah lead acid battery | AC110～240V 50～60Hz DC9V Built-in 6V4Ah lead acid battery |
Using environment | Temperature: -10℃~+40℃ Humidity: ≤85%RH | Temperature: -10℃~+40℃ Humidity: ≤85%RH |
Dimensions |
