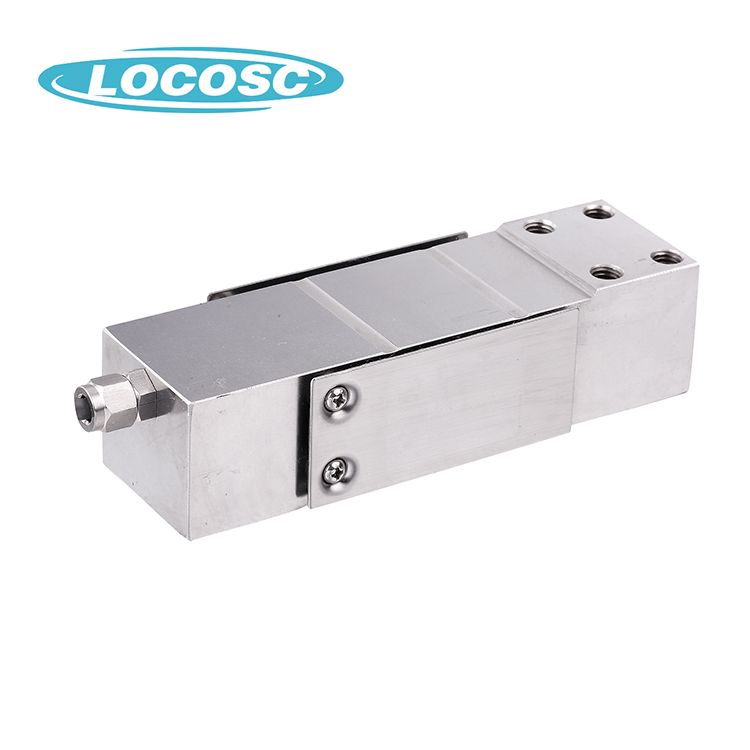

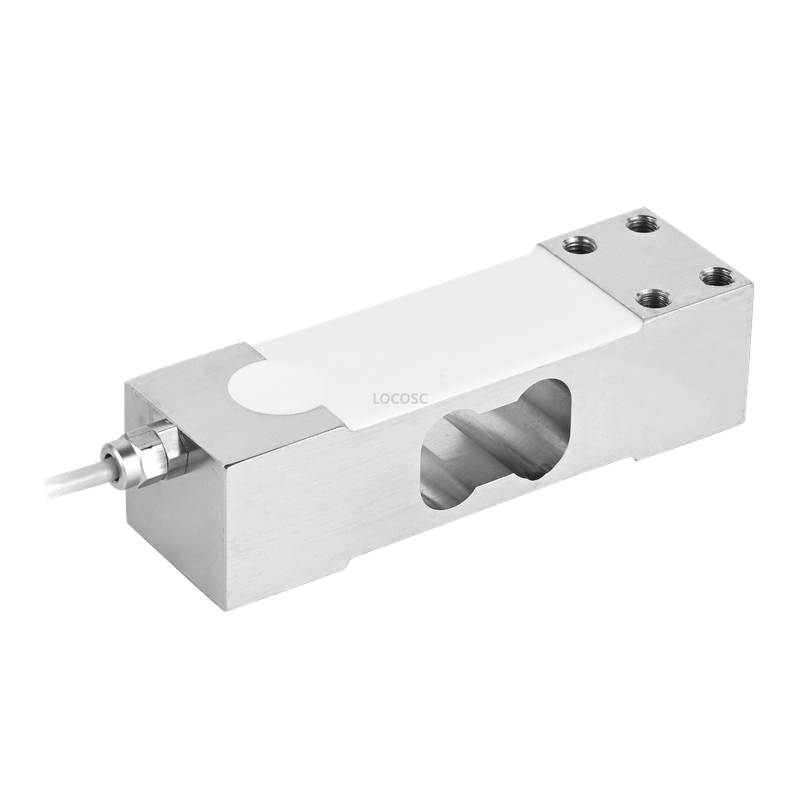

LP7160A Single point Load Cell

  • LP7160A

  • Locosc

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

LP7160A Single Point  Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.

Process flow：Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing（Cleaning glue）→ Packing and storage

 LP7160A



LP7160A

Rated Capacity: 50/100/150/200/250/300/500kg

Accuracy Class: C3

Rated Output: 2.0±0.2mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.0016%F.S

Input Resistance: 385±10Ω

Output Resistance: 350±3Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 2m   4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy steel or stainless steel,IP67

Application for: Waterproof bench/Counting scales, check weighing etc.

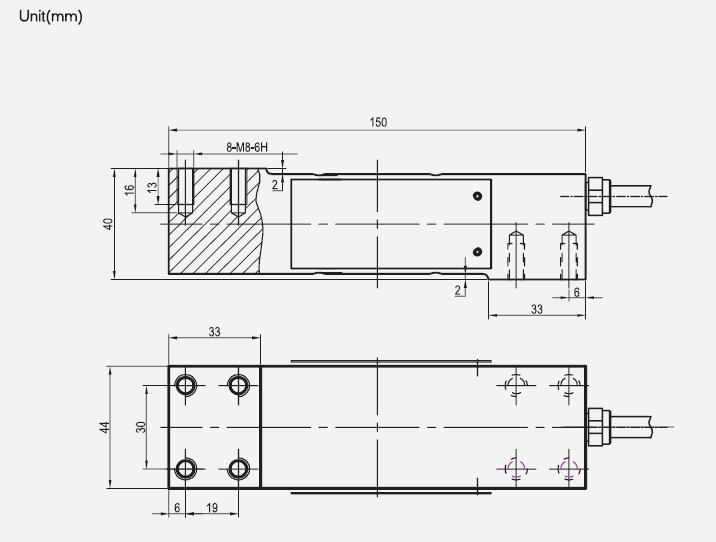

LP7160A-1

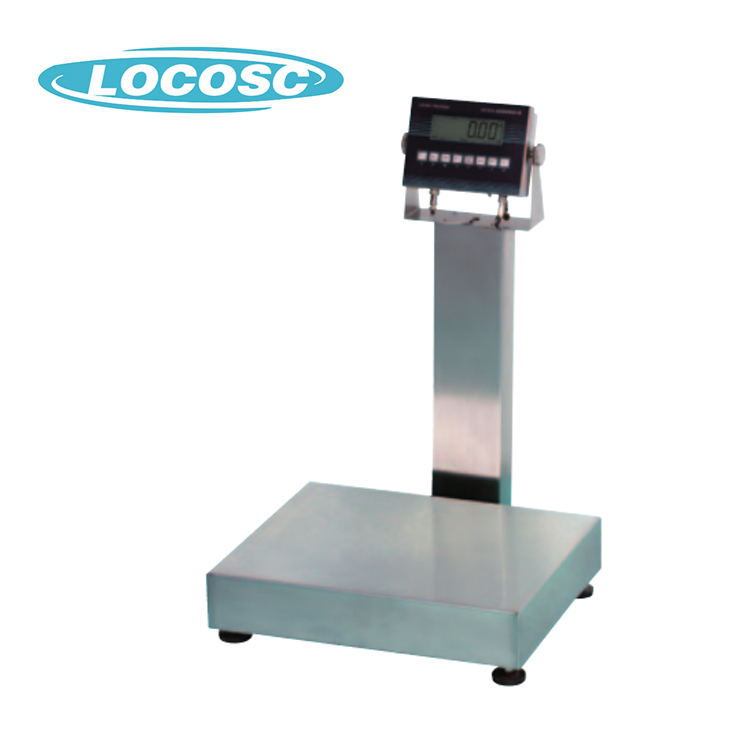

Water proof Bench scale


LP7610W
