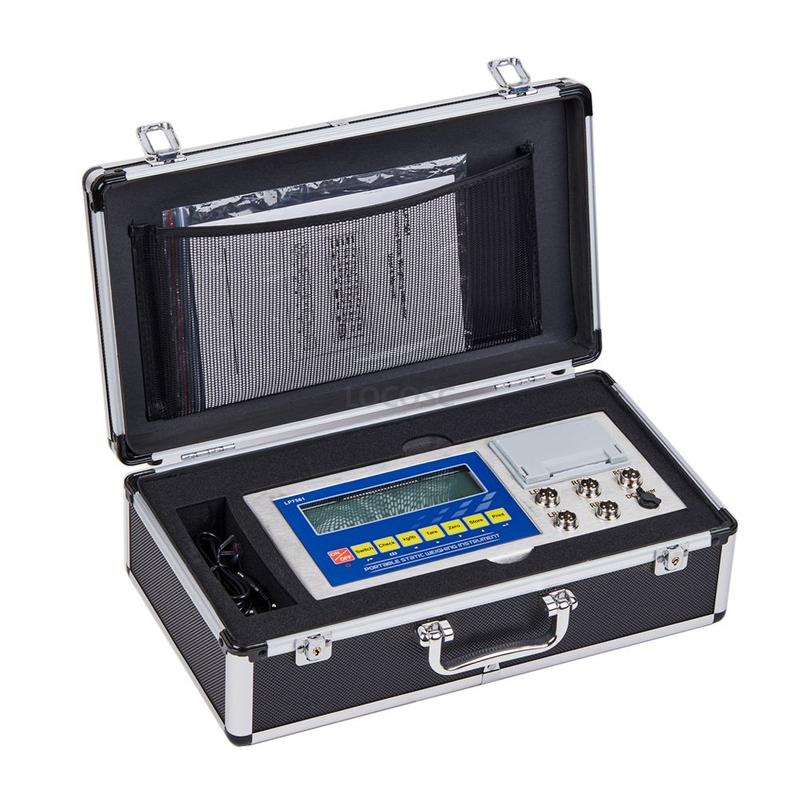

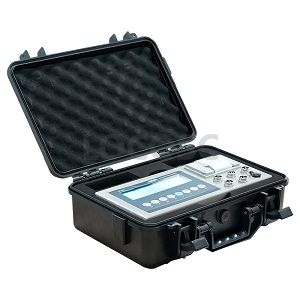

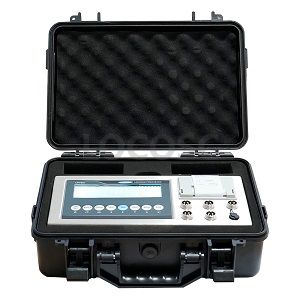

LP7561
LOCOSC
| Quantity: | |
|---|---|
Technical parameters:
Display 6-digit 25mm LCD with backlight
Key 8
Power supply AC 110V~240V 50/60Hz, 6V4Ah lead acid battery
Battery enduring life 30 hours
Communication Zigbee 2.4GHz
Distance 80m
Transmitter LP7562W/LP7562V (6 at most)
Operating temperature -10ºC ~ +40ºC
Input sensitivity 0.5μV/D
Load cell excitation DC5V, maximum connect with 24 pcs of 350Ω load cell
Zero calibration -30mV ~ 30mV
AD internal resolution 1/2000000
AD external resolution 1/15000
AD coversion rate 60 times/sec
Span calibration Full digital calibration
Dimension 200mm* 75mm* 185mm
Weight 1.8kg
Features:
1. high resolution axle indicator;
2. it can connect with 1/2/3/4 weighing pads;
3. 6-wire or 4-wire loadcell support, maxim 24pcs of load cells;
4. serial port RS232;
5. PC command mode;
6. stainless steel bracket.
