LP7163
Locosc
Availability: | |
---|---|
Quantity: | |

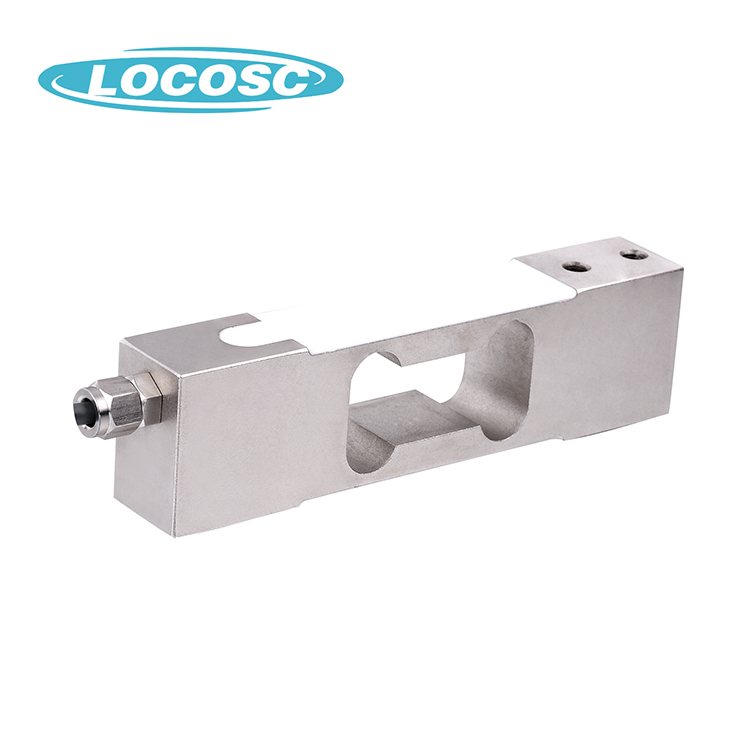

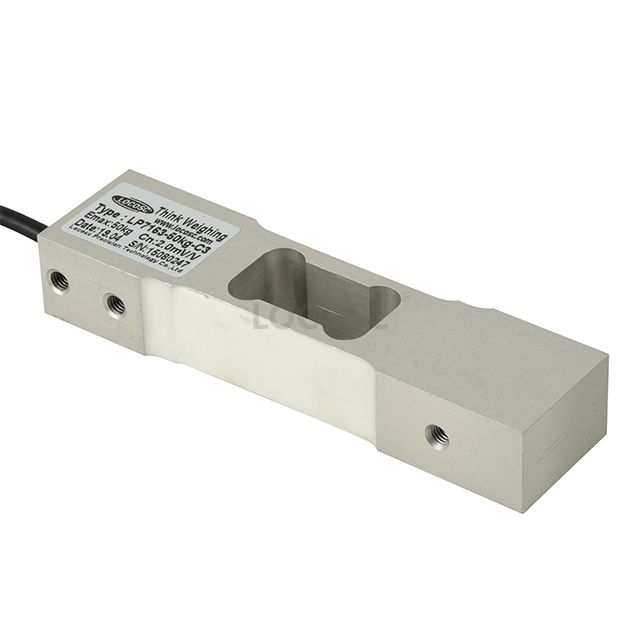

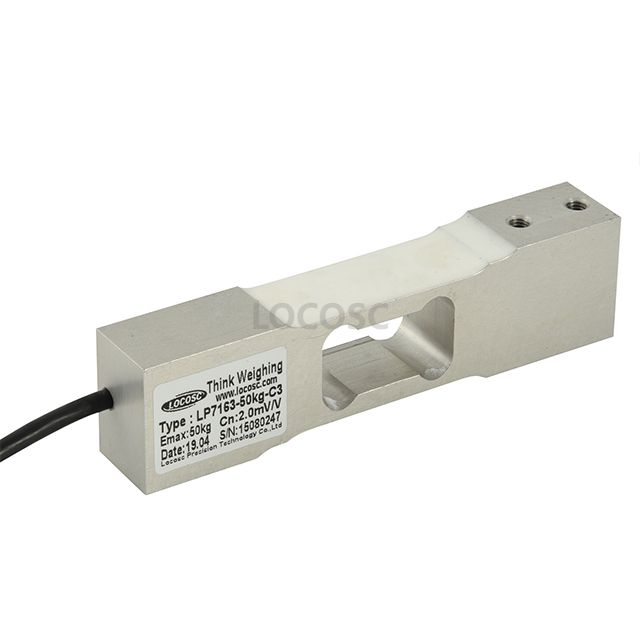

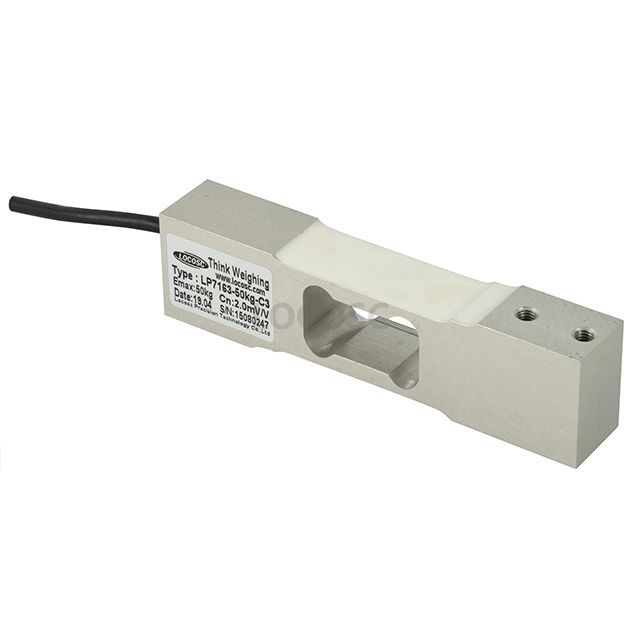

LP7163 Single Point Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
LP7163 Single Point Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
</template>

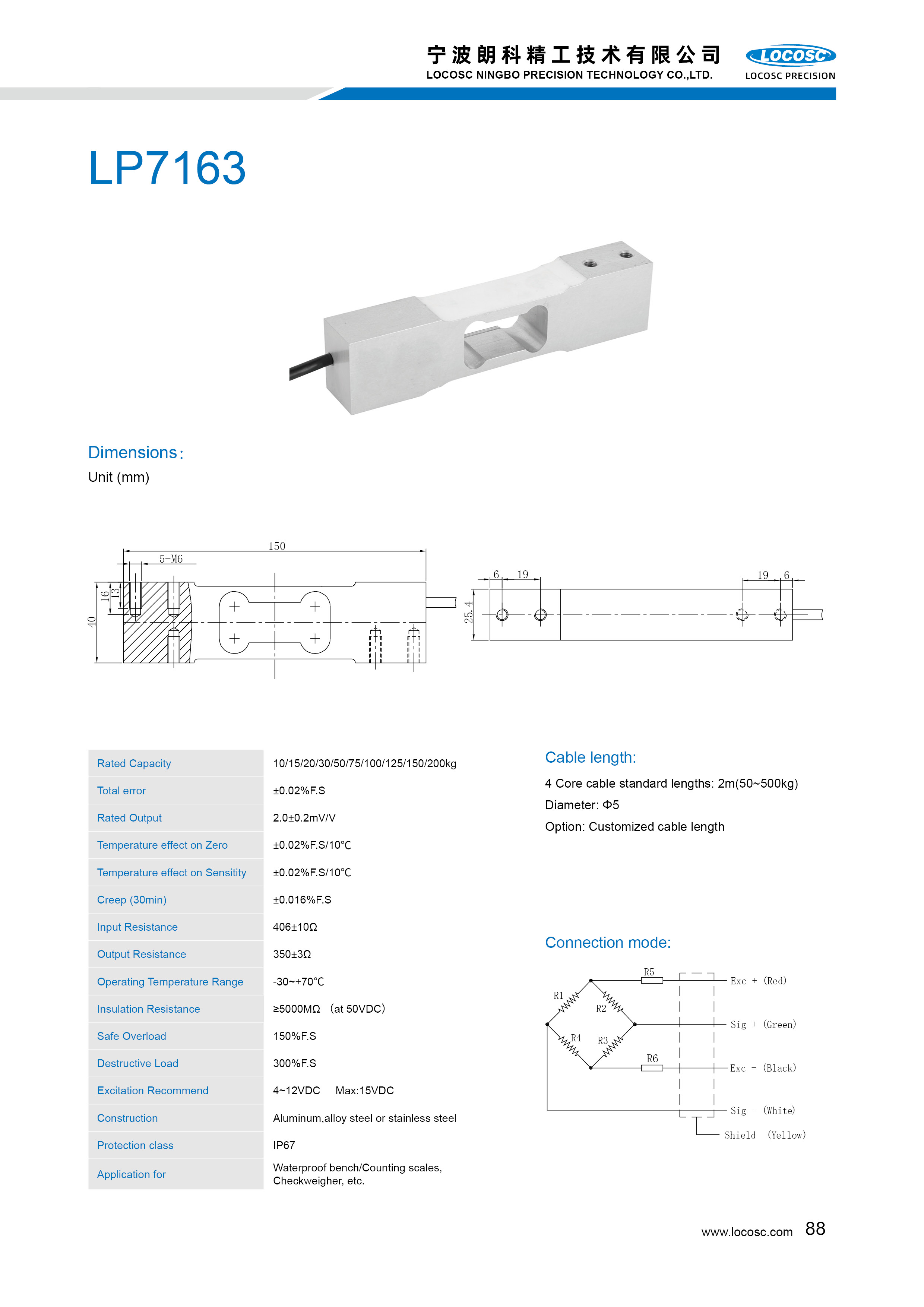

LP7163
Rated Capacity: 10/15/20/30/50/75/100/125/150/200kg
Accuracy Class: C3
Rated Output: 2.0±0.2mV/V
Total error: ±0.02%F.S
Creep(30min): ±0.016%F.S
Input Resistance: 406±6Ω
Output Resistance: 350±3Ω
Operating Temperature: -10~+40℃
Safe Overload: 150%F.S
Destructive Load: 200%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 2m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Aluminum or Alloy steel,IP67
Application for: Bench/Counting scales,check weighing etc.
LP7163
Rated Capacity: 10/15/20/30/50/75/100/125/150/200kg
Accuracy Class: C3
Rated Output: 2.0±0.2mV/V
Total error: ±0.02%F.S
Creep(30min): ±0.016%F.S
Input Resistance: 406±6Ω
Output Resistance: 350±3Ω
Operating Temperature: -10~+40℃
Safe Overload: 150%F.S
Destructive Load: 200%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 2m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Aluminum or Alloy steel,IP67
Application for: Bench/Counting scales,check weighing etc.
Bench scale
Bench scale
