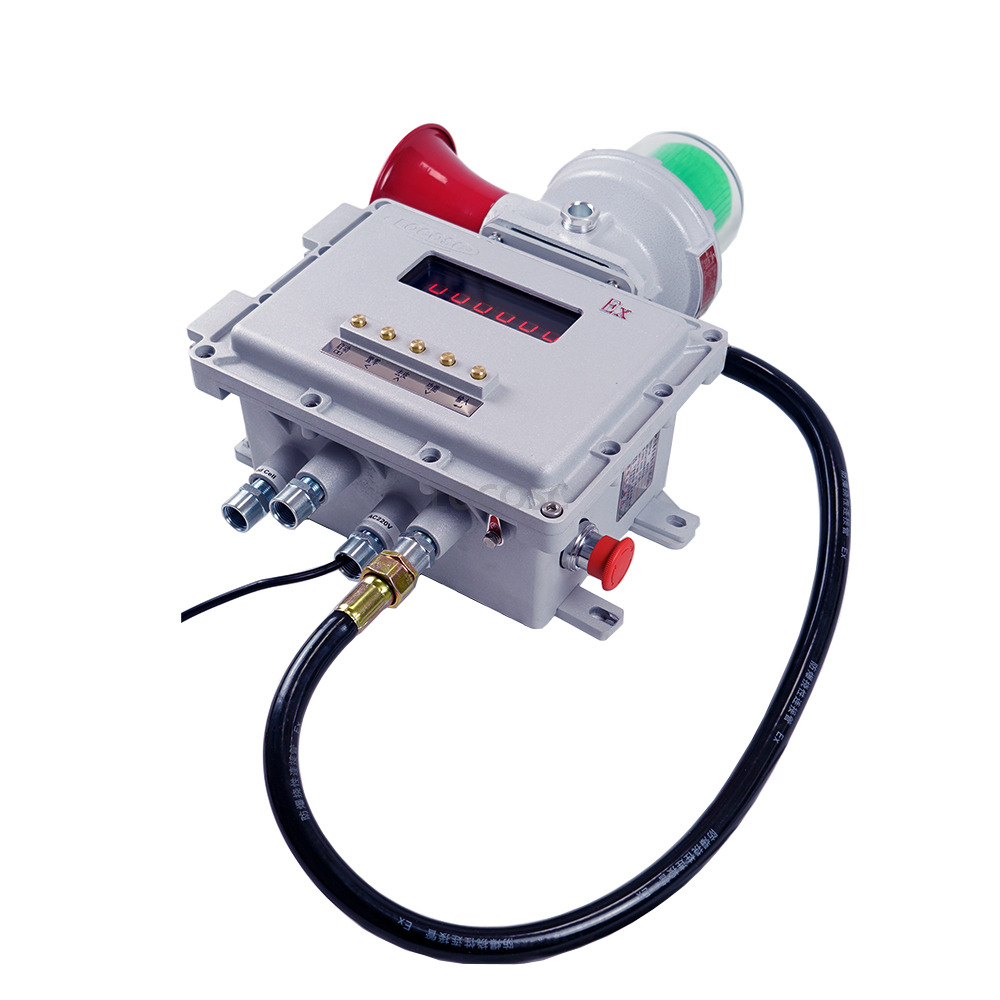

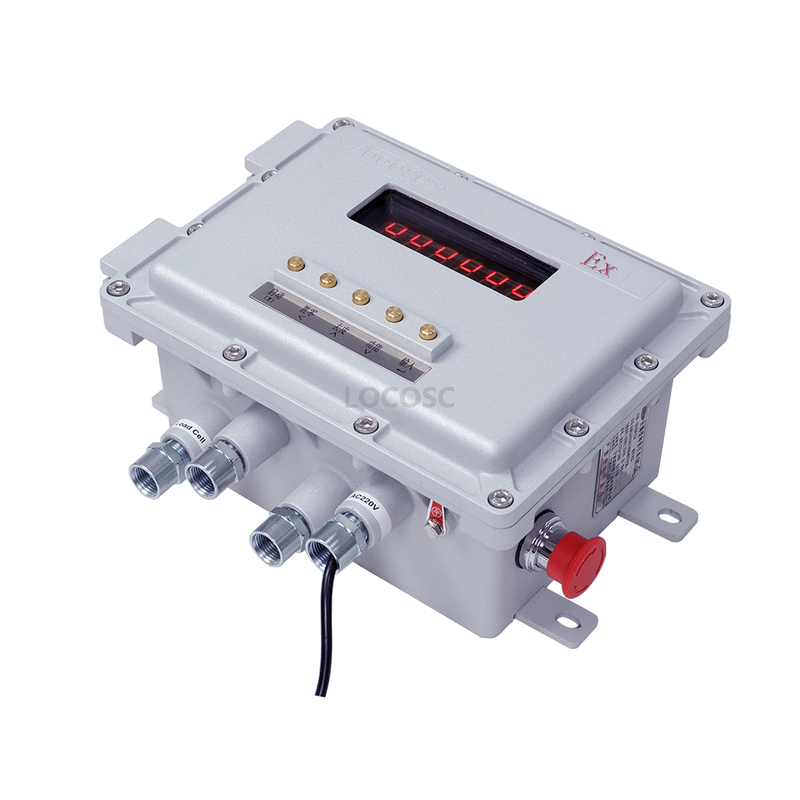

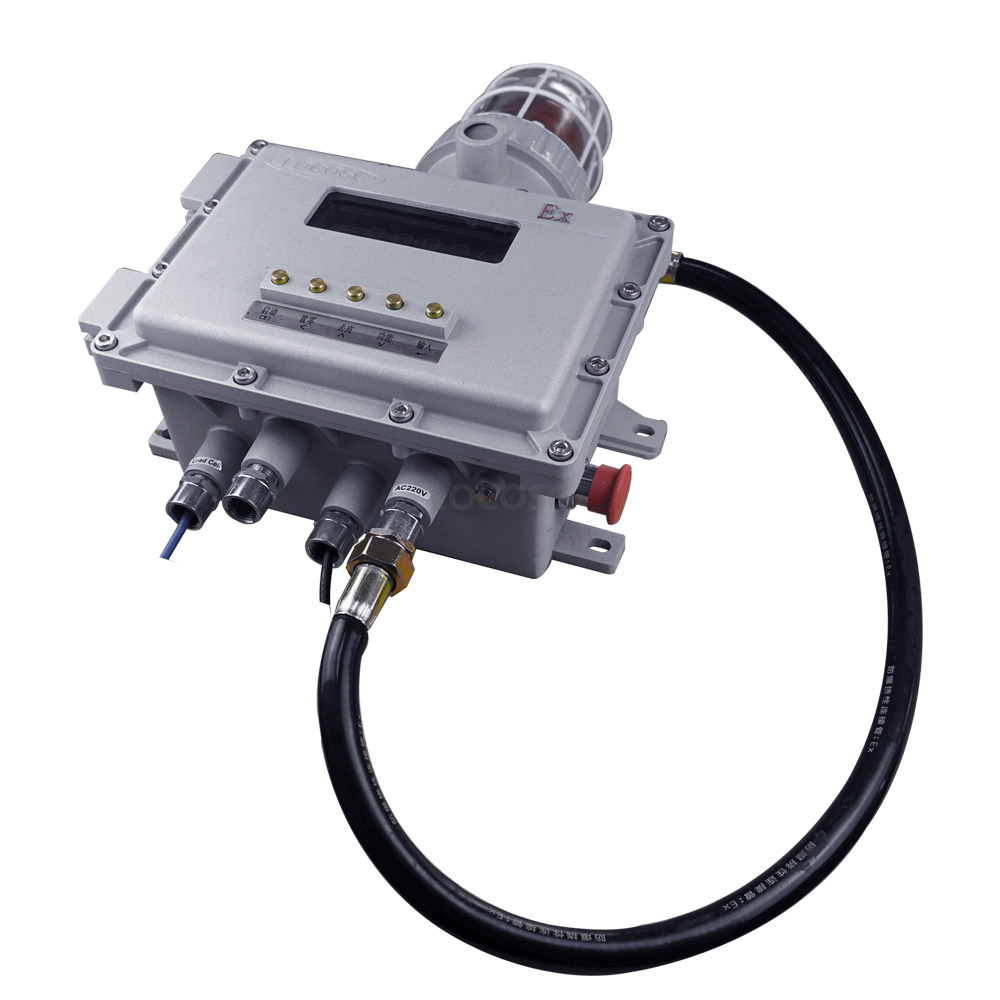

XK3150-Exd-ⅡB Indicator by Flameproof Enclosure

Explosion protection(Ex) electronic weighing instruments, based on general electronic weighing instruments ,take various technical  measures such as voltage reducing, current limiting, isolating, hermetically sealing, and optical communicating, eliminate or block  possible sources of explosion (electrical sparks, static sparks, high temperature...) in the electric circuits within the weighing instrument.

※ Technical parameters

△ Die-cast aluminum
△ Display: 6-digit 20mm LED display
△ Accuracy class:(D，n=5000
△ CPA certificate number: 2024F747-33
△ CCC certificate number: 2021322309004272
△ Ex certificate number: GYB22.2579x
△ Ex Marking:Ex db [ia lIC Ga】 IIB T6 Gb
△ Power: AC220v/(DC24V optional)
△ Work environment:-10°C~+40°C,≤80%RH
△ Communication port: RS232、RS485
