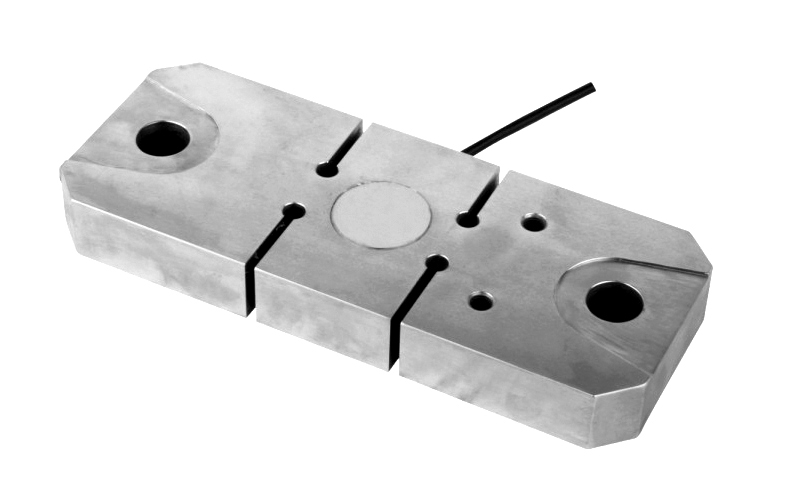

LP7147 S type load cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
LP7147 S type load cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
</template>
LP7147

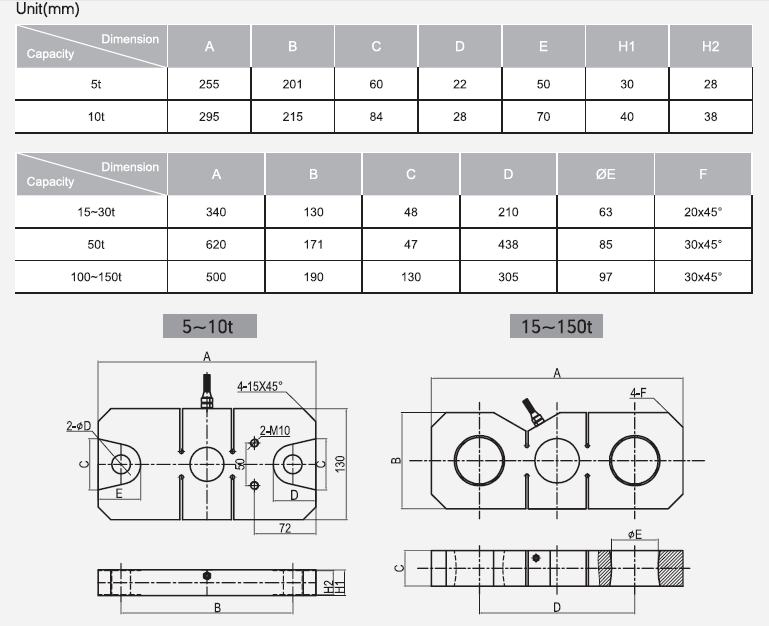

Rated Capacity: 5/10/15/20/30/50/100/150t
Accuracy Class: D1
Rated Output: 2.0±0.002 mV/V(5~50t);
1.5±0.01 mV/V(100~150t)
Total error: ±0.05%F.S
Creep(30min): ±0.05%F.S
Input Resistance: 385±10Ω
Output Resistance: 350±2Ω
Operating Temperature: -10~+40℃
Safe Overload: 120%F.S
Destructive Load: 120%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 0.5~3m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Alloy steel,IP67
Application for: crane scale, packing scale,tension testing etc.
LP7147
Rated Capacity: 5/10/15/20/30/50/100/150t
Accuracy Class: D1
Rated Output: 2.0±0.002 mV/V(5~50t);
1.5±0.01 mV/V(100~150t)
Total error: ±0.05%F.S
Creep(30min): ±0.05%F.S
Input Resistance: 385±10Ω
Output Resistance: 350±2Ω
Operating Temperature: -10~+40℃
Safe Overload: 120%F.S
Destructive Load: 120%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 0.5~3m 4 wires with shield
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Alloy steel,IP67
Application for: crane scale, packing scale,tension testing etc.
</template>
Crane scale
Crane scale
</template>
