LP7142F
Locosc
Availability: | |
---|---|
Quantity: | |

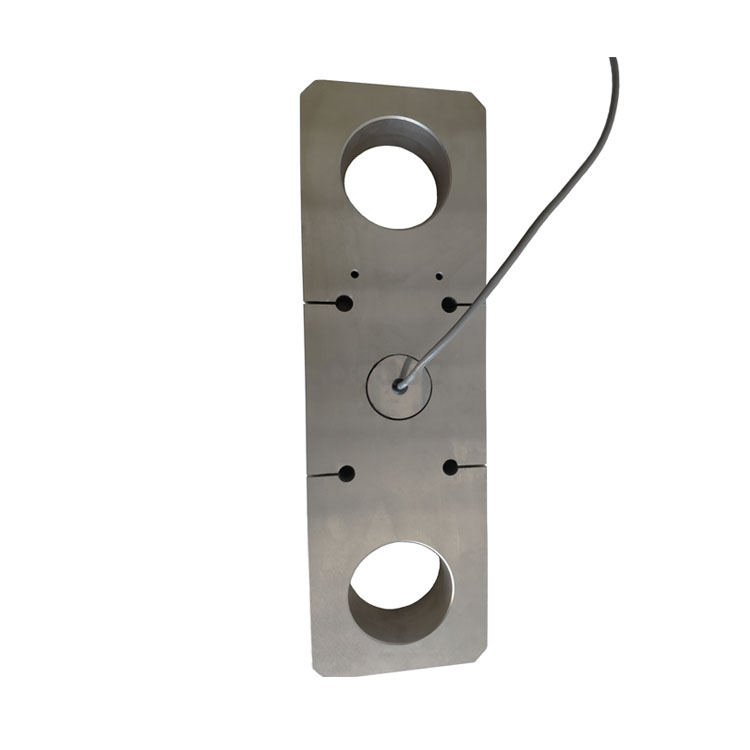

LP7142F Tension Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
LP7142F Tension Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
Process flow:Patch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser welding→Initial test→ Standardized compensation→Retest→Sealing(Cleaning glue)→ Packing and storage
</template>
LP7142F
Rated Capacity: 25/50/100/150/200/250 klb
Accuracy Class: C3
Rated Output: 2.0±0.1mv/v
Total error: ±0.1% F.S
Creep(30min): ±0.05%F.S
Input Impedance: 385±10Ω
Output Impedance: 351±2Ω
Operating Temperature: -10~+40℃
Safe Overload: 150%F.S
Destructive Load: 200%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 4 wires with screen
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Alloy Steel or Stainless steel, IP67
Application for: Crane,packing scale,tension etc.
LP7142F
Rated Capacity: 25/50/100/150/200/250 klb
Accuracy Class: C3
Rated Output: 2.0±0.1mv/v
Total error: ±0.1% F.S
Creep(30min): ±0.05%F.S
Input Impedance: 385±10Ω
Output Impedance: 351±2Ω
Operating Temperature: -10~+40℃
Safe Overload: 150%F.S
Destructive Load: 200%F.S
Excitation Recommend: 4~12VDC Max:15VDC
Cable Length: 4 wires with screen
Exc+(red) Exc-(black) Sig+(green) Sig-(white)
Construction: Alloy Steel or Stainless steel, IP67
Application for: Crane,packing scale,tension etc.

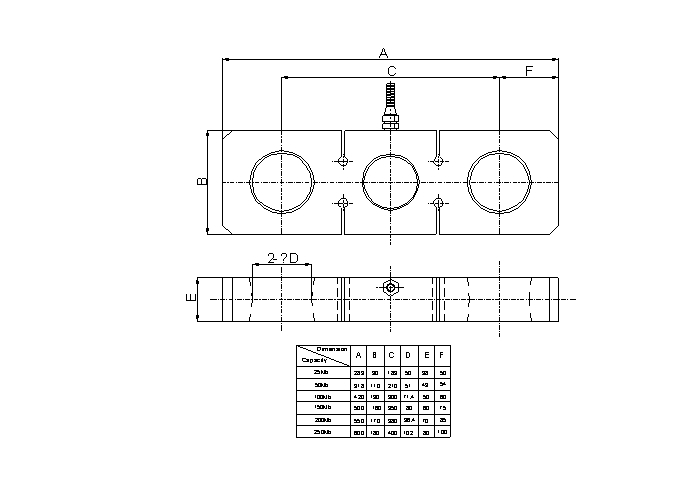

Outline Dimension(mm)
Outline Dimension(mm)
</template>
Crane,packing scale,tension etc.
Crane,packing scale,tension etc.
