LP7631
LOCOSC
Availability: | |
---|---|
Quantity: | |
Product function
Basic Function | Weight Set Zero Cumulative |
Optional Function | Printing Communication Interface: RS232 Bluetooth Interface: Bluetooth WIFI |
System specifications

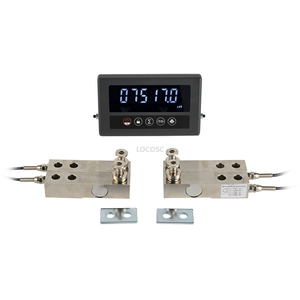

Name | Model | QTY | Usage |
Weighing Kit | LP7631C | 1 | Weighing |

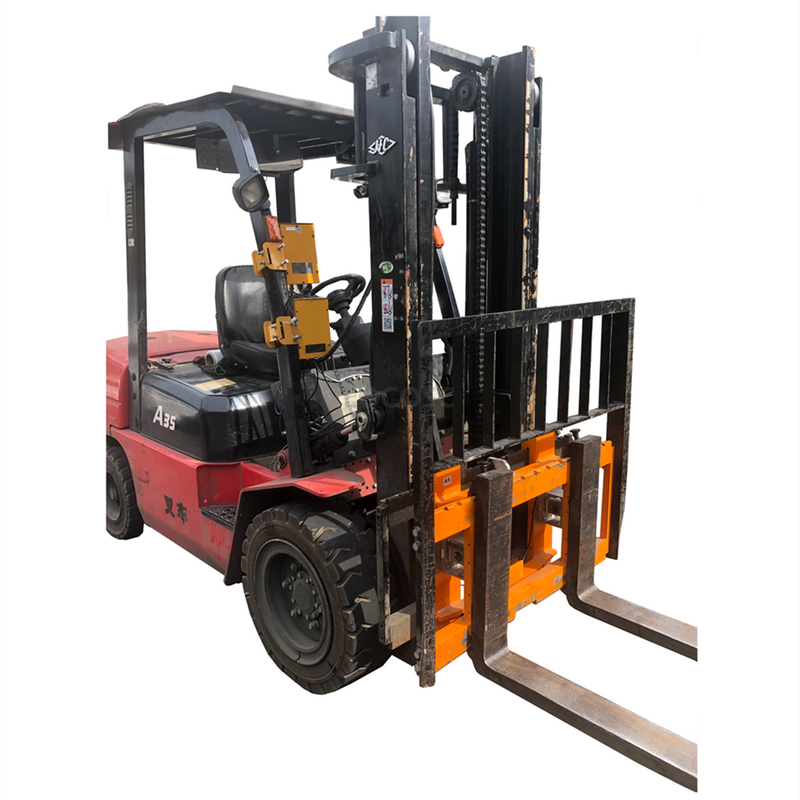

Forklift weighing indicator | LP7631T | 1 | Indicate weight |
Technical parameters
Capacity | 50kg-3500kg |
Capacity | 1kg |
Relative error | ≤0.2% |
Power vol | 12V-24VDC |
Operating current | 150mA@12V or 100mA@24V |
Operating temperature | -20℃~+70℃ |
Instrument display | LCD |
Shell size | 130*115*215 mm |

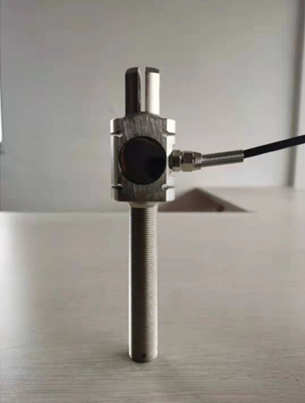

Sensor parameters
Model | LP7142P | |
Rated capacity | 4t | |
Precision grade | ≤0.1% | |
Rated output | 1.5±0.1mv/v | |
Input impedance | 385±10Ω | |
Output impedance | 351±2Ω | |
Operation temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation recommended | 4~12VDC, Max:15VDC | |
Cable | 4-wire with screen | Exc+(red), Exc-(black) Sig+(green), Sig-(white) |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Crane, packing scale, tension etc. |
Product function
Basic Function | Weight Set Zero Cumulative |
Optional Function | Printing Communication Interface: RS232 Bluetooth Interface: Bluetooth WIFI |
System specifications
Name | Model | QTY | Usage |
Weighing Kit | LP7631C | 1 | Weighing |
Forklift weighing indicator | LP7631T | 1 | Indicate weight |
Technical parameters
Capacity | 50kg-3500kg |
Capacity | 1kg |
Relative error | ≤0.2% |
Power vol | 12V-24VDC |
Operating current | 150mA@12V or 100mA@24V |
Operating temperature | -20℃~+70℃ |
Instrument display | LCD |
Shell size | 130*115*215 mm |
Sensor parameters
Model | LP7142P | |
Rated capacity | 4t | |
Precision grade | ≤0.1% | |
Rated output | 1.5±0.1mv/v | |
Input impedance | 385±10Ω | |
Output impedance | 351±2Ω | |
Operation temperature | -10~+40℃ | |
Safe overload | 150%F.S | |
Destructive Load | 200%F.S | |
Excitation recommended | 4~12VDC, Max:15VDC | |
Cable | 4-wire with screen | Exc+(red), Exc-(black) Sig+(green), Sig-(white) |
Construction | Alloy Steel or Stainless steel, IP67 | |
Application for | Crane, packing scale, tension etc. |
